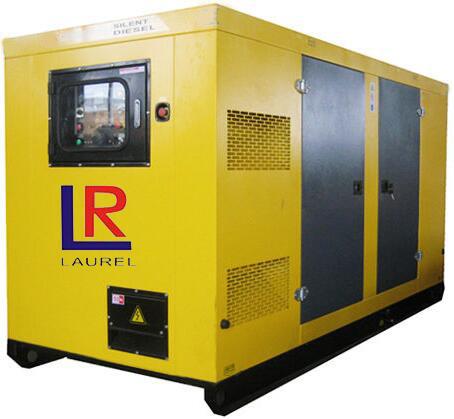

Electric 20kVA 50Hz Air Cooled Silent Diesel Generator Set with 4B3.9 - G2 Cummins Engine
Electric 20kVA Air Cooled Silent Diesel Generator Set with 4B3.9 - G2 Cummins Engine
Specifications
1. 20kva/16kw silent diesel electric generator
2. ISO, CE certificates
3. Cummins OEM factory
4. High quality with best price
Cummins is one of world top famous engines and widely acceptable all over the world. Cummins Inc., a global power leader, is a corporation of complementary business units that design, manufacture, distribute and service engines and related technologies, including fuel systems, controls, air handling, filtration, emission solutions and electrical power generating systems. Headquartered in Columbus, Indiana, (USA) Cummins serves customers in approximately 190 countries and territories through a network of more than 600 company-owned and independent distributor locations and approximately 5,200 dealer locations.
20KVA Silent Diesel Generating :
| Genset Model | LF16GF |
| Genset Output Power | 16KW |
| Rated Voltage | 380/220V |
| Frequency | 50Hz |
| Power Factor(COS) | 0.8(lagging) |
| Dimension (L×W×H) (mm) | 2000*1000*1500 |
| Net weight (kg) | 850 |
| Diesel Engine | |
| Brand | DCEC Cummins |
| Model | 4B3.9-G2 |
| Engine Structure | In line 4 cylinder, 4 stroke, turbocharged |
| Rotating Speed | 1500r/min |
| Engine Cooling Method | Radiator for ambient temp 40OC, belt driven cooling fan with cover |
| Governor System | Precise electrical governor system |
| Starting Method | 12V DC, with Silicon commutating charging motor |
| Engine Filter System | Dry type air filter, fuel filter, oil filter |
| Displacement(L) | 3.9 |
| Compression Ratio | 16.51 |
| Bore×Stroke(mm) | 102×120 |
| 100% load fuel consumption (L/h) | 6.7 |
| Lube capacity(L) | 10.9 |
| Alternator | |
| Brand | Kaijieli(China-French joint venture Leory Somer technology) |
| Model | TWGII184E |
| Excite Type | Brushless ,Self-exciting, AVR automatic voltage regulating |
| Connecting Type | 3 Phase and 4 Wires |
| Steady Frequency Change | 05% |
| No load voltage | ≥95%105% |
| Steady voltage | ≤±1% |
| Insulation degree | H degree |
| Enclosure degree | IP21 |
The components of the genset:
(1) Diesel engine;
(2) Generator;
(3) Control panel
(4) silent box
The noise Reduction 70db in 7 meters
The Accessories:
Wave pipe , curved pipe , muffler , accumulator and the connecting lines , shock-absorbing spacer , and data .
Control Panel:
The control panel is Ordinary integrative type control panel, with the display of voltage,current, frequency, water temperature, oil pressure.
