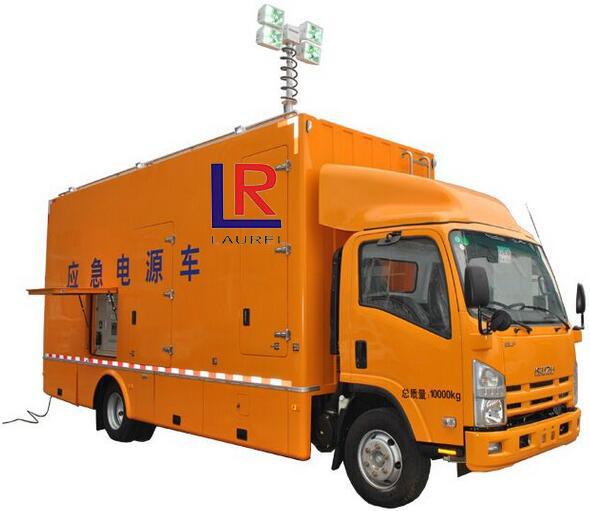

300kw Customized Truck Diesel Generator Set with Copper Winding Wire Brushless ISO
300kw Customized Truck Diesel Generator Set with 100% Copper Winding Wire Brushless
Specifications
1)silent portable generator
2) trailer mounted generator
3) low noise level
4) high temperature operation
5)ISO CE SGS
Specification for movable power generator:
| Gensets model | LFT378V5 | ||||||||
| Prime power | 300KW/378KVA | ||||||||
| Rated Voltage(V) | 400/230 | ||||||||
| Rated frequency(HZ) | 50 | ||||||||
| Rated Speed(RPM) | 1500 | ||||||||
| Power Factor | 0.8(lagging) | ||||||||
| Dimensions(mm) (L×W×H) | 7000*2200*2400mm | ||||||||
| Genset Weight(kg) | 10000 |
The specification of engine:
| Engine brand | VOLVO | ||||||||
| Engine model | TAD1343GE | ||||||||
| Rated power | 323 kW/443 KVA | ||||||||
| Number of Cylinders | 3 | ||||||||
| Cylinder arrangement | In-line | ||||||||
| Cycle | Four stroke | ||||||||
| Aspiration | Turbocharger | ||||||||
| Bore×Stroke (mm×mm) | 131 x 158 | ||||||||
| Compression Ratio | 18:01 | ||||||||
| Speed Governor | Electrical | ||||||||
| Cooling System | Forced Water Cooling Cycle | ||||||||
| Total lubrication system capacity (L) | 44 | ||||||||
| Fuel Consumption at 100% Load (g/kw.h) | 192 | ||||||||
| Starting Method | DC24V electrical starting |
The specification of alternator:
| Alternator brand | Stamford | ||||||||
| Alternator model | HCI444F | ||||||||
| Rated power | 302KW/378KVA | ||||||||
| Number of Phase | 3 | ||||||||
| Connecting Type | 3 Phase and 4 Wires | ||||||||
| Number of Bearing | 1 | ||||||||
| Protection Grade | IP23 | ||||||||
| Altitude | ≤1000m | ||||||||
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire | ||||||||
| Insulation Class | H | ||||||||
| Telephone Influence Factor (TIF) | ≤50 | ||||||||
| THF | ≤2% | ||||||||
| Voltage Regulation, Steady State | ≤±1% | ||||||||
| Transient State Voltage | ≤-15%~+20% |
Warranty policy
Guarantee for one year or 1500 hours whichever reach first from ex-factory date.
During the guarantee period, we will provide the free easy-damageable
spare parts of diesel engine caused by our quality of production or raw material.
After expiration, we provides cost spare parts maintenance of gensets
OEM Service
We can provide professional OEM Service for customers.
1. Unique design and manufacture of generator according to customers requirement.
2. Customer logo printing or painting on the genset.
3. Installation and Operation manual neutral or headings can be design according to
customer requirement.
4. Full warranty cover to support customers.
Packaging & Shipping
Packed with wrapped film as standard,plywooden case for options
When we finished the test of diesel generator,our transporation department then will take charge
of sending the generator to the container at port of loading,with help of our excellent forwarder,
we send our generators to our customers successfully without any damage.
