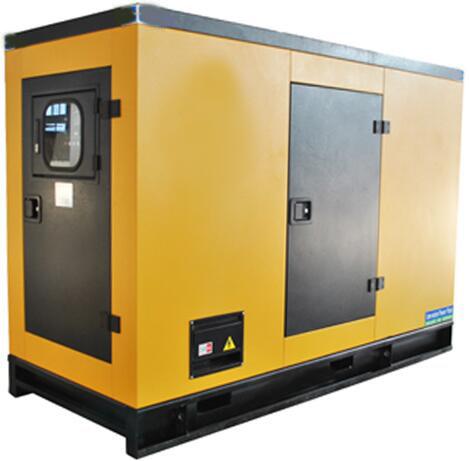

Forced Water Cooling 30kw Silent Diesel Generator Set with Stamford Alternator
Forced Water Cooling 30kw Portable Silent Diesel Power Generator with Stamford Alternator
Standard Supply Scope:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame .
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card
Optional supply scope:
1.ATS 2. Synchronization System 3. External daily fuel tank 4. Silent Canopy 5. Trailer 6. Auto Fuel Pump 7. Fuel and Water Separator 8. Lub Oil Heater 9. Coolant Heater 10. Fuel Drain Pump
Specification of genset:
| Gensets model | LFS38D6 | ||||||||
| Rated power | 30kW/38kVA | ||||||||
| Rated Voltage(V) | 440/220 | ||||||||
| Rated frequency(HZ) | 60 | ||||||||
| Rated Speed(RPM) | 1800 | ||||||||
| Power Factor | 0.8(lagging) | ||||||||
| Dimensions(mm) (L×W×H) | 1420x700x920 | Open type | |||||||
| Genset Weight(kg) | 720 | ||||||||
| Dimensions(mm) (L×W×H) | 2200x940x1460 | Silent type | |||||||
| Genset Weight(kg) | 1140 | ||||||||
Specification of diesel engine:
| Engine model | F4L913 | ||||||||
| Output power | 44kW/55kVA | ||||||||
| Number of Cylinders | 4 | ||||||||
| Cylinder arrangement | In-line | ||||||||
| Cycle | Four stroke | ||||||||
| Aspiration | Aspiration | ||||||||
| Bore×Stroke (mm×mm) | 102 x 125 | ||||||||
| Displacement (Liter) | 4.1 | ||||||||
| Compression Ratio | 17.0:1 | ||||||||
| Speed Governor | Mechanical/Electrical | ||||||||
| Cooling System | Forced Water Cooling Cycle | ||||||||
| Total lubrication system capacity (L) | 11 | ||||||||
| Fuel Consumption at 100% Load (g/kw.h) | 228 | ||||||||
| Starting Method | DC24V electrical starting |
Specification of alternator:
| Alternator brand | Stamford | ||||||||
| Alternator model | PI1 44H | ||||||||
| Rated power | 30kW/38kVA | ||||||||
| Number of Phase | 3 | ||||||||
| Connecting Type | 3 Phase and 4 Wires | ||||||||
| Number of Bearing | 1 | ||||||||
| Protection Grade | IP23 | ||||||||
| Altitude | ≤1000m | ||||||||
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire | ||||||||
| Insulation Class | H | ||||||||
| Telephone Influence Factor (TIF) | ≤50 | ||||||||
| THF | ≤2% | ||||||||
| Voltage Regulation, Steady State | ≤±1% | ||||||||
| Transient State Voltage | ≤-15%~+20% |
COMPANY Overview
Founded in 1981, headquarter in Guangzhou, China.
Power generator ranges: 5KVA to 3125KVA with ISO9001 standard and certified CE directive marking.
Have up-to-date international technology and manufacturing processes.
Annual output: over 5,000 sets.
LAUREL POWER GENERATOR left foot-sprints in more than 100 countries and areas with advanced products and service.
