Air - cooled Vertical V Twin 22HP 870F Industrial Diesel Engines with 4 Stroke Direct Injection
Air - cooled Vertical V Twin 22HP 870F Diesel Engine with 4 Stroke Direct Injection
Product Strength
1. air cooled , V-twin, vertical, 4-stroke
2. 22HP V-twin diesel engine.
3. Electric start.
4. Strong power;Low fuel consumption.
5. Low noise,Fast starting
Application
22hp V-twin diesel engine LR870F is mainly uesd for agriculture machinery,construction machinery,small boat,generator and etc.
Specification
| Model | LR870F |
| Type | V-twin,4-stroke,air-cooled, vertical |
| Bore*stroke (mm) | 2-86*75 |
| Dislacement (L) | 0.87 |
| Combustion system | direct injection |
| Rated output KW (HP) / rpm | 13(17.7) / 3000 14(19) / 3600 |
| Max output KW (HP) / rpm | 16.2(22) / 3600 |
| Direction of rotation | Counterclockwise, facing PTOshaft |
| Fuel | 0# (Summer) / -10# (Winter) |
| Fuel tank capacity (L) | -- |
| Lubricating oil capacity (L) | 1.7 |
| Lubricating system | Pressure splashed |
| Starting system | Electric start |
| Packing size (L*W*H) mm | 550*391*459 |
| Net weight (KG) | 60 |
Why choose us?
Company's Profile
Guangzhou Laurel & Honesty Holdings, founded in 1981, has 35 years export experience in Guangzhou. Our main export products are diesel generator sets, small power gasoline or diesel generators, small power gasoline or diesel engines, gasoline water pumps and other machinery products, as well as architectural glass and other building materials. We have obtained the relevant certifications such as ISO, CE,ROHS, GS, TUV etc
Guarantee Service
We deliver not only our products, but also our value-added technical support and after-sales service. We ensure that all our original purchasers get Laurel & Honesty products guarantee under this warranty statement.
Warranty Period
We will provide a warranty period of 24 months or 1200 operating hours to the original purchasers for all our Diesel associated products, and a warranty period of 12 months or 1000 operating hours to the original purchasers for all gasoline associated products. The warranty period starts from the day of delivery to the original retail purchaser

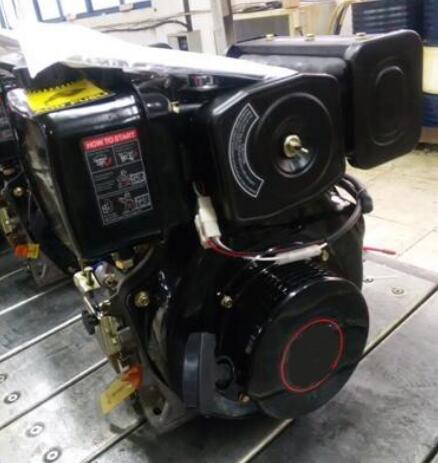

Diesel Engines Pictures:
