4hp - 9hp Gasoline Tractor Tillers and Cultivators 200 mm Tilling Depth
4hp-9hp Gasoline Tiller Cultivators for cultivating in the field of corn, soybean and beet
1.pretrol rotary tiller
2.accept trial order
3.factory in Xiamen
4.engine power:4HP,6HP,7HP,10HP
The machine is suitable for cultivating in the field of corn, soybean and beet, etc. it can be used for cultivating, furrowing, ridging and deep loosening.
*It can be widely meet the hills,mountains,greenhouses,orchards,paddy fields,such as a variety of different geogrophical agronomic needs.

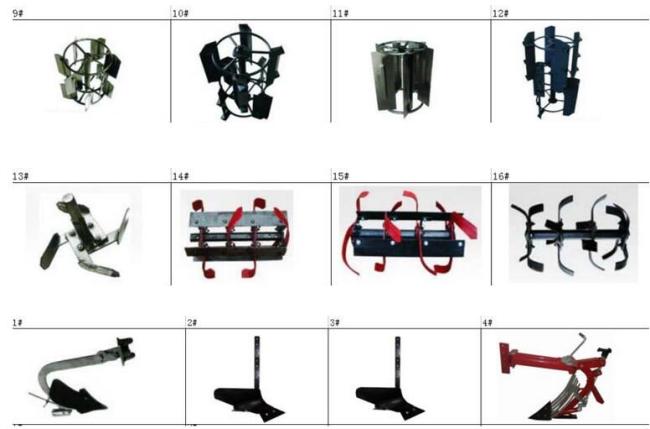

*With related tool,dry land rototiller,paddy field rototiller,pumping.
*Transportation,threshing,ditching,spray pesticide,power,irrigation.
*Easy operate,light weight ,multi-function.
Specifications:
Model No.
| LM360 | LM400 | LM500 | LM900 | LM1000C | LM1100C | ||
| Tilling | |||||||
| Tilling scope (mm) | 360 | 550 | 500-1000 | 800-1200 | 800-1000 | 800-1100 | |
| Tilling depth (mm) | 200 | 150-250 | 150-250 | 150-300 | 150-300 | 150-300 | |
| Transmission type | Belt | Gear | Belt | Belt | Gear | Gear | |
| Transmission oil (L) | 0.2L | 0.6 | 0.95L | 1.1L | 1.0L | 1.1L | |
| Transmission Material | Iron plate | aluminum | aluminum | Cast iron | Aluminum + Cast iron | ||
| Gear Shifting | 0,1 | 0,1 | 0,1,2,-1 | 0,1,2,-1 | 0,1,2,3,-1 | 0,1,2,-1 | |
| Tilling blade | 4-2 blades | 3-4 blade | 3-4 blade | 3-4 blade | 3-4 blade | 4-4 blade | |
| Gasoline Engine | |||||||
| Engine model | WY1P70FV | WY1P70FV | WY170F | ||||
| Engine Type | Vertical shaft ,4 stroke, single cylinder,air-cooled |
Horizontal shaft ,4 stroke, single cylinder,air-cooled |
|||||
| Displacement (cc) | 173cc | 173 | 212 | 212 | 212 | 212 | |
| Bore×Stroke(mm) | 70x45 | 70x45 | 70x55 | 70x55 | 70x55 | 70x55 | |
| Max power output(HP/rpm) | 4.3kw(6.0HP)/3600 | 4.3kw(6.0HP)/3600 | 7.0/3600 | 7.0/3600 | 7.0/3600 | 7.0/3600 | |
| Max torque(N•m/rpm) | 9.0N.m/3600rpm | 9.0N.m/3600rpm | 11.5/3000 | 11.5/3000 | 11.5/3000 | 11.5/3000 | |
| Starting type | Manual start | Manual start/electric start | |||||
| Fuel tank capacity (L) | 1.7 | 1.7 | 3.6 | 6 | 6 | 6 | |
| Oil capacity (L) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | |
| Packing Details | |||||||
| Carton Dimension(mm) | 700x390x700 | 700x390x700 | 680x460x710 | 880x460x840 | 1060x560x895 | 1060x560x895 | |
| N/G•W(kg) | 34/36 | 34/36 | 60/74 | 70/85 | 105/12 | ||
