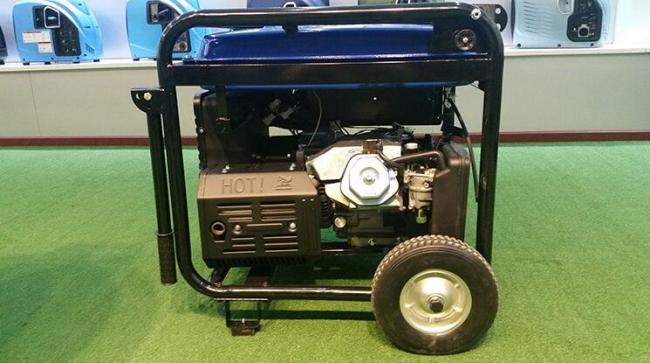

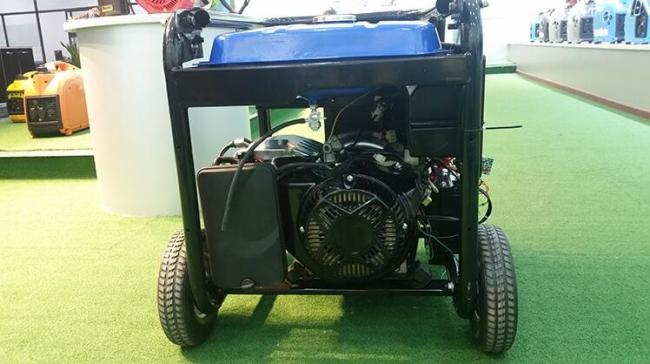

Single Phase 6.5kw Industrial Portable Inverter Gasoline Mini Camping Generator
Single Phase 6.5kw Industrial Portable Inverter Gasoline Mini Camping Generator
Economy of scale, ODM, OEM is available for open frame generator.
1. Generator set with AVR(Auto voltage adjustor) Protection.
2. Oil alert system, fuel indicator and DC Protector.
3. Frame Overall protection, easy to move and storage.
4. Voltage 100/110/120/220/230/240V to be optional.
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Inverter Generator Data:
| Generator | |
| Model | LR6500I |
| Frequency (Hz) | 50 Hz |
| Max.output (KW) | 7 KW |
| Rated output(KW) | 6.5 KW |
| Rated AC voltage(V) | 230 V |
| Power factor | 1 |
| DC output (V) | 12 V / 9 A |
| Phase | Single Phase |
| Excitation | Brushless self-excitation |
| Start system | Recoil |
| Operating noise level (7m) dB(a) at 1/2 load | ≤70 dB(a) |
| Eingine | |
| Engine model | LE190F |
| Horsepower(HP) | 15 HP |
| Engine type | Forced air cooled, 1-cylinder, 4-stroke, OHV |
| Fuel consumption(G/KW.H) | ≤620 G/KW.H |
| Compression ratio | 8.5:1 |
| Bore*Stroke(MM) | 89*66 MM |
| Displacement(CC) | 429 CC |
| Recommend fuel | 93# gasoline, Unleaded gasoline |
| Lubrication oil capacity (L) | 1.1 L |
| Fuel tank capacity (L) | 25 L |
| Continous operating hour(Hr) at 1/2 load | 7 Hr |
| Ignition system | C.D.I |
| Dimensions | |
| Packing Method | Carton or plywood case |
| Net Weight / Gross Weight(KG) | 84 KG / 85KG |
| Net size / Package size(L*W*H)(MM) | 600×450×500 MM / 630×480×540 MM |
| 20' / 40' Container loading qty (SET) | 213 SET / 426 SET |
| Standard Features | |
| Fuel indicator | Yes |
| Auto voltage adjustor | Yes |
| Oil alert system | Yes |
| Circuit protector | Yes |
| Overload alarm system | Yes |
| Output indicator | Yes |
| LCD panel | Optional |
| Parallel connection | Optional |
Product Features
Meet your high quality portable power requirements.Drive to the suburb hiking or camping,loncin inverter generators provide clean and quiet,portable power supply,which will be the perfect match with your wonderful outdoor life.
When you want convenience or want to have a frequency generator in the work place,this frequency generators can be safely run on electrical equipment,which is very sensitive to power quality (beyond the power grid quality electricity quality),helping you experience colorful life.
1.Higher quality output power than normal inverter generators.
2.Low noise.
3.Lightweight,portable,compact.
4.Low fuel consumption.
5.Low emissions and environment-friendly.
6.Long continuous working hours.
