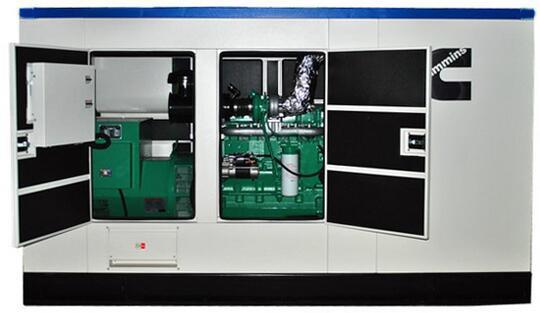

250kVA Silent Diesel Engine Cummins Generator 200kw with Four Stroke In - line Self - exciting
250kVA Silent Diesel Engine Cummins Generator 200kw with Four Stroke In - line Self - exciting
Our Services
1.OEM is available,we accept your brand and designing of packing cartons.
2.We supply samples for your reference and checking.
3.Delivery time:at least 15 days after receiving your deposit.
4.Warranty:1 Year,except the easily damaged parts.
FAQ
Q1: What's your MOQ of this Item?
A1: 1 PCS
Q2: What's your payment term?
A2: L/C and T/T
Q3: Where is your Loading Port?
A3: Guangzhou,China Port or according to your requirements.
Q4: How about your quality control in your factory?
A4: Our company are always paying great attentions to the quality controlling from the beginning to the end.
Q5: Can you produce according to the samples?
A5: Yes, we can produce by your samples or technical drawings.
Q6: How do you make our business long-term and good relationship?
A6: 1. We keep good quality and competitive price to ensure our customers’ benefit;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Specification of genset
| Gensets model | LFS250C5-2 | ||||||||
| Prime power | 200KW/250KVA | ||||||||
| Rated Voltage(V) | 400/230 | ||||||||
| Rated frequency(HZ) | 50 | ||||||||
| Rated Speed(RPM) | 1500 | ||||||||
| Power Factor | 0.8(lagging) | ||||||||
| Dimensions(mm) (L×W×H) | 2930x1010x1710 | Open type | |||||||
| Genset Weight(kg) | 2200 | ||||||||
| Dimensions(mm) (L×W×H) | 4000x1800x2150 | Silent type | |||||||
| Genset Weight(kg) | 4000 | ||||||||
Specification of diesel engine
| Engine model | NT855-GA | ||||||||
| Output power | 254kW/318kVA | ||||||||
| Number of Cylinders | 6 | ||||||||
| Cylinder arrangement | In-line | ||||||||
| Cycle | Four stroke | ||||||||
| Aspiration | Turbo | ||||||||
| Bore×Stroke (mm×mm) | 140 x 152 | ||||||||
| Displacement (Liter) | 14 | ||||||||
| Compression Ratio | 15.0:1 | ||||||||
| Speed Governor | Electronic | ||||||||
| Cooling System | Forced Water Cooling Cycle | ||||||||
| Total lubrication system capacity (L) | 38.6 | ||||||||
| Fuel Consumption at 100% Load (g/kw.h) | 192 | ||||||||
| Starting Method | DC24V electrical starting |
Specification of alternator
| Alternator brand | Stamford | ||||||||
| Alternator model | UCDI 274K | ||||||||
| Rated power | 200kW | ||||||||
| Number of Phase | 3 | ||||||||
| Connecting Type | 3 Phase and 4 Wires | ||||||||
| Number of Bearing | 1 | ||||||||
| Protection Grade | IP23 | ||||||||
| Altitude | ≤1000m | ||||||||
| Exciter Type |
Brushless ,Self-exciting, AVR automatic voltage regulating, 100% Copper winding wire |
||||||||
| Insulation Class | H | ||||||||
| Telephone Influence Factor (TIF) | ≤50 | ||||||||
| THF | ≤2% | ||||||||
| Voltage Regulation, Steady State | ≤±1% | ||||||||
| Transient State Voltage | ≤-15%~+20% |
