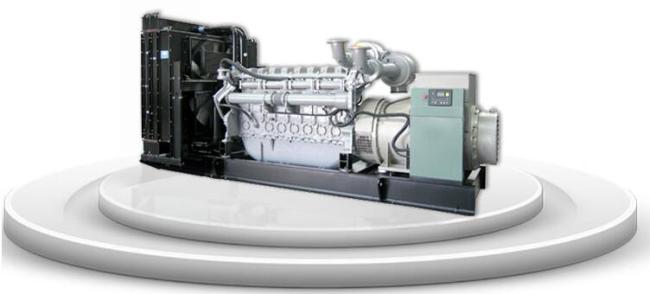

Electrical 350 kVA Water Cooled Open Diesel Generator 280KW With Stamford Alternator
Electrical 350kVA Water Cooled Diesel Generator 280KW with Stamford Alternator
Main Parts Feature:
Engine Feature for gensets 350kw
1.Diesel, heavy-duty, four stroke, water cooled and direct injection fuel system
2.24/12V D.C starter and charger alternator
3.Industrial capacity exhaust silencer supplied loose with flexible section
4.Engine driven cooling fan with protection guard
5.Steel wire braided fuel lines, vent and rain fittings
6.Set mounted acid battery installed with leads and terminals
Alternator Feature for gensets 350kw
1.Brushless self excited, single bearing, 4 poles
2.Class H insulation
3.IP21/23 protection standard
4.Self-exciting and self-regulating
5.Automatic voltage regulator (AVR)
Control System Feature for gensets 350kw
1.manual / auto start and protection module
2.Equipped with Deep Sea,ComAp,Harsen,Smartgen famous control systems.
3.New integrated controllers in manual and remote start application.
4.Featuring full gen-set monitoring and protection.
5.Powerful graphic display, Icons, symbols and bar graphs.
Specification of genset
| Gensets model | LF350P5 | ||||||||
| Prime power | 280KW/350KVA | ||||||||
| Rated Voltage(V) | 400/230 | ||||||||
| Rated frequency(HZ) | 50 | ||||||||
| Rated Speed(RPM) | 1500 | ||||||||
| Power Factor | 0.8(lagging) | ||||||||
| Dimensions(mm) (L×W×H) | 3029x1120x1871 | Open type | |||||||
| Genset Weight(kg) | 3020 | ||||||||
| Dimensions(mm) (L×W×H) | 4300x2100x2300 | Silent type | |||||||
| Genset Weight(kg) | 5020 | ||||||||
Specification of diesel engine
| Engine model | 2206C-E13TAG2 | ||||||||
| Standby Power | 349 kW/436kVA | ||||||||
| Number of Cylinders | 6 | ||||||||
| Cylinder arrangement | In-line | ||||||||
| Cycle | Four stroke | ||||||||
| Aspiration | Turbo,Air/Air Cooling | ||||||||
| Bore×Stroke (mm×mm) | 130 x 157 | ||||||||
| Displacement (Liter) | 12.5 | ||||||||
| Compression Ratio | 16.3:1 | ||||||||
| Speed Governor | Electrical | ||||||||
| Cooling System | Forced Water Cooling Cycle | ||||||||
| Total lubrication system capacity (L) | 40 | ||||||||
| Fuel Consumption at 100% Load (g/kw.h) | 209 | ||||||||
| Starting Method | DC24V electrical starting |
Specification of alternator
| Alternator brand | Stamford | ||||||||
| Alternator model | HCI 4E | ||||||||
| Rated power | 280KW/350KVA | ||||||||
| Number of Phase | 3 | ||||||||
| Connecting Type | 3 Phase and 4 Wires | ||||||||
| Number of Bearing | 1 | ||||||||
| Protection Grade | IP23 | ||||||||
| Altitude | ≤1000m | ||||||||
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire | ||||||||
| Insulation Class | H | ||||||||
| Telephone Influence Factor (TIF) | ≤50 | ||||||||
| THF | ≤2% | ||||||||
| Voltage Regulation, Steady State | ≤±1% | ||||||||
| Transient State Voltage | ≤-15%~+20% |
