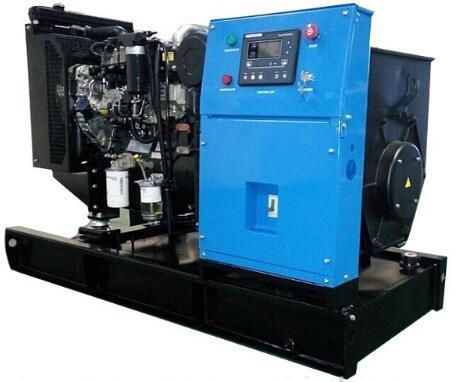

4 Cylinder 44kw 55kVA Standby Industrial Diesel Generator With Cummins Engine
Great Engine Powered 44kw 55kVA Standby Diesel Industrial Generator with Cummins Engine
Diesel generator Specifications
1. Powered by reliable engines
2. Branded alternator
3. Open type, silent type or super silent type generator
4. ISO, CE certified
Generator specs:
Rated output: 2 to 2,000kW/2 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz
Cooling method: closed water-cooled or air-cooled
Starting method: electric start or recoil start
Rated speed: 1,500/1,800/3,000/3,600rpm
Noise level: 56 to 75dB, 7 meters away
Specification of generator:
| Genset Model | LF10 | LF15 | LF17.5 | LF22 | LF30 | LF33 | LF50 | LF55 | LF66 | |
| Rated Power |
KW/ KVA |
7/9 | 10.8/13.5 | 12.8/16 | 16/20 | 22/27.5 | 24/30 | 36/45 | 40/50 | 48/60 |
| Standby Power |
KW/ KVA |
8/10 | 12/15 | 14/17.5 | 17.6/22 | 24/30 | 26.4/33 | 40/50 | 44/55 | 52.8/66 |
| Rated Voltage | V | 220V/127V 380V/220V 400V/230V 415V/240V 480V/277V 600V/346V | ||||||||
| Speed | RPM | 1500/1800 | ||||||||
| Rated frequency | Hz | 50/60 | ||||||||
| Engine Model | 403A -11G1 |
403A -15G1 |
403A -15G2 |
404A -22G1 |
404D -22TG |
1103A -33G |
1103A -33TG1 |
1104A -44TG1 |
1104A -44TG1 |
|
| Engine Power | KW | 9.5 | 13.5 | 15 | 20.6 | 27.7 | 31 | 46.5 | 65.6 | 65.6 |
| Air intake way | Natural | Natural | Natural | Natural | Turbo | Natural | Turbo | Turbo | Turbo | |
| Governor | Mechanical | Electronic | Mechanical | |||||||
| Cylinder | QTY | 3 | 3 | 3 | 4 | 4 | 3 | 3 | 4 | 4 |
| Bore*Stroke |
mm* mm |
77*81 | 84*90 | 84*90 | 84*100 | 84*100 | 105*127 | 105*127 | 105*127 | 105*127 |
| Displacement | L | 1.131 | 1.496 | 1.496 | 2.216 | 2.216 | 3.3 | 3.3 | 4.4 | 4.4 |
| Fuel Consumption |
g/ kw.h |
248 | 248 | 250 | 237 | 246 | 211 | 207 | 208 | 208 |
| Compression Ratio | 23:1 | 22.5:1 | 22.5:1 | 23.3:1 | 23.3:1 | 19.25:1 | 17.25:1 | 17.25:1 | 17.25:1 | |
| Alternator Model | STF -164B |
STF -164C |
STF -164D |
STF -184E |
STF -184F |
STF -184G |
STF -224C |
STF -224D |
STF -224E |
|
| Voltage Regulation | AVR | |||||||||
| Excitation Method | Brushless | |||||||||
| Open Type Size | mm |
1580 *930 |
1580 *930 |
1580 *930 |
1580 *990 |
1580 *990 |
1580 *1150 |
1580 *1150 |
1580 *1200 |
1580 *1200 |
| Open Type Weight | kg | 580 | 600 | 620 | 720 | 750 | 860 | 980 | 1080 | 1120 |
| Soundproof Size | mm |
1900* 1000 *1030 |
1900* 1000 *1030 |
1900* 1000 *1030 |
1900* 1000 *1050 |
1900* 1000 *1050 |
2000* 1050 *1300 |
2100* 1050 *1300 |
2300* 1150 *1350 |
2300* 1150 *1350 |
| Soundproof Weight | kg | 880 | 900 | 930 | 1050 | 1100 | 1220 | 1450 | 1560 | 1800 |
Packing:
PE film with hard paper corner protector
Applications:
With advanced reasonable structure, high efficiency, low vibration and noise, smooth running, high reliability, easy handling, KEYPOWER generators are widely used in national defense, telecommunications, construction site, commercial buildings, industrial and mining sites, oil fields, roads, ports, villas, banks, hospitals etc.
