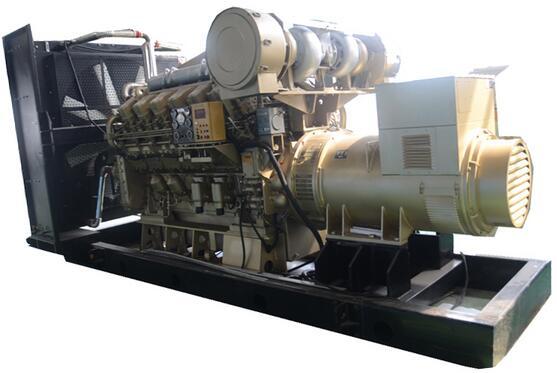

Natural Gas Powered Generator with DC24V Electric Starting / Stamford Alternator
Professional OEM 500kw Natural Gas Genset with DC24V Electric Starting , Stamford Alternator
Advanced core technology :
Electrical Control and Gas Mix Technology
1. Full capacity output in low methane density condition.
2. Quick response to instantaneous load fluctuation.
Lean Combustion Technology
1. Less gas consumed
2. Lower exhaust temperature which results in longer engine life.
3. Lower annually operating cost
4. Lower emission
5. High efficiency
ADVANCED GAS TECHNOLOGY WILL BRING YOU HUGE ECONOMIC BENEFIT
There are three popular ways to utilize gas to generate electricity nowadays:
1. Boiler +steam turbine
2. Gas turbine +team turbine
3. Gas engine
Among the three, the third one outweighs the others by having the following advantages:
1. High electrical efficiency
2. Low requirements to gas and load can be adjusted automatically according to gas concentration
3. Wide range of rating
4. Advanced technology assured stable performance
5. Compact structure, small size and light weight make installation and transportation easier.
6. Simple operation and quick start and shut down enable convenient maintenance.
7. Various safety measures warrant reliable performance
8. Flexible accessories
Features:
| Gas Genset | Genset model | LF500 |
| Rated power(kw/kva) | 20-1000 | |
| Gas Engine | Engine model | 12V138QI |
| Rated power(kw/kva) | 230/287.5 | |
| BorexStroke(mm) | 138*150 | |
| Rated speed (rpm) | 1500/1000 | |
| Starting system | Electric starting(DC24V ) | |
| Governing method | Electrical | |
| Cooling system | Closed water-cooled | |
| No of cylinder | 6/12 cylinders in-line | |
| Inspiration method | Turbo-charged | |
| Gas consumption(m3/kw.h) | 0.32 | |
| AC Alternator | Alternator model | Stamford/Marathon/other |
| Excitation mode | brushless | |
| Insulation class | H | |
| Protection class | IP23 | |
| Factor | 0.8 Lagging | |
| Phase/Wires | 3 phase 4 wire | |
| Gas Genset | ||
| Overall dimention(LxWxH) (mm) | 3250x1450x2100 |
Why choosing Laurel?
1) We are professional gas generator manufacturer, with 36 years of manufacturing and exporting experience
2) We cooperate with famous engine and alternator factory, such as Perkins engine, Cummins engine, Doosan, Lovol, Mitsubishi, Deutz, Yuchai, Weichai, Stamford, Leroy somer, etc.
3)We supply you spare parts during the whole service life.
4) Adopt International quality standards, to meet high quality requirement. Our generators with CE, ISO, BV, SGS certifcate.
5) Good reputation for Reliable quality & Reasonable price
6) Strong technical support and advanced production line with skilled workers
