AC Single Phase 5kVA Small Diesel Generator with 17L Fuel Tank , Apollo 24Ah
AC Single Phase 5kVA Small Diesel Industrial Generator with 17L Fuel Tank , Apollo 24Ah
Descriptions:
1. All the goods meet international quality standard such as CE,ISO quality certification. 100%copper wire,only use good material.
2. Two hours strict testing must be done before delivery, including 50% load, 75%load, 100%load, 110%load.
3. OEM for you,offer any parts and technical support you need all the time,not only warranty time.
4. We can produce Diesel generator(2-2000KW), Gasoline generator (0.65- 7KW), LPG&Gas generator(1.8- 2000KW). we cooperate with Original Cummins,Holland,Stamford,Perkins-Lovol,deutz, leroysomer,Weichai,Shangchai, Quanchai,weifang,Yangdong and so on.
Our Advantages:
We offer 12month after-sales service and 1% free parts. If the defect is caused by our technology,we will be responsible for the all,even we can send the replacement to your or send our enginer to your country if it is serious.If need and your quantity is enough large,we can send enginer to your country to help you such as installment or teach you some maintenance knowledge and how to solve some problem that you frequently meet. For the parts, they will be sent out during 3days at most after receiving your request
Technical Data:
| Model | LR6700T |
| rated frequency Hz | 60 |
| rated output KVA | 5 |
| max output KVA | 5.5 |
| rated voltage V | 120 |
| rated current A | 41.7 |
| rated current r/min | 3600 |
| number of phase | 1 |
| power of factor Cosφ | 1 |
| insulation class | F |
| dimensions L x W x H (mm) | 910x 530 x 740 |
| net weight kg | 171 |
| engine type | LE186FA |
| fuel type | summer0#,winter-10# or-20# |
| lubricants type | summer CC15W/40#,winterCC15W/30# |
| oil capacity L | 1.65 |

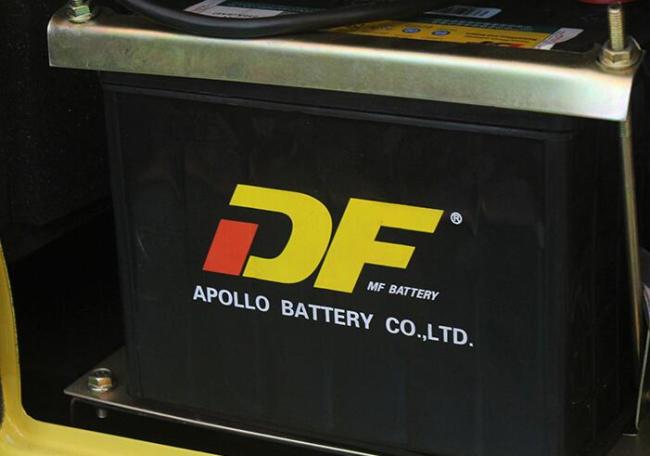

| Red electric capacity V-Ah | Apollo 24Ah |
| fuel tank capacity L | 13.5/17 |
| continuous operation time of unit h | 6 |
Application:
5KVA Small Diesel Industrial Generator mainly apply single-cylinder diesel engine include water-cooled, air-cooled two major series of products.Covering power 25.5 KW, 3 KW ~ is widely used for holding and rounds of small-size 4-wheel tractors, engineering machinery, automobile, generator, water pump unit, air compressor units, agricultural and sideline products processing, garden machinery, etc.
Generater set is suitable for industrial and mining enterprises, hotels, hospitals, rural town, fishery forestry as dynamic lighting, communication radio mobile or fixed power, also can be used as a backup power for building, hotel.Especially suitable for field work the needs of users, mountain water shortage area.
Feature:
Constant voltage AVR control germany technology
heat insulation F class insulation heat resistant 155 citidegree
security intelligence smart oil alarm automatic locking waterproof plug
