108kw 135kVA Water Cooled Open Diesel Generator 50 / 60HZ Diesel Powered Generator
Superior Performance 108kw 135kVA Water Cooled Diesel Power Generator Open Type 50 / 60HZ
Safe-simple-convenient-practical design
1. Our cooperate with famous diesel engine – USA brand,Deutz, Lovol/UK brand, UK-Lister Petter, Weichai, MTU
2. Brushless alternator -- Stamford, Leroy Somer, Marathon.
3. High-quality steel are thickness -- 2MM to 4MM
4. High density sound-absorbing material -- sound insulation, fireproofing
5. New design of turn-back type for air inflow & air outlet which can reduce the noise and advance engine efficiency.
Diesel generator set Silent / Soundproof type
Our gensets compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4
standard
Prime output power: 8kw-1200 kw (10kva-1600kva)
Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc.
Phase/connecting: 3 phase, 4wire.
Rated frequency: 50Hz@1500rpm, 60Hz@1800rpm
Specification of generator:
| Genset Model | LF88 | LF110 | LF135 | LF150 | LF175 | LF200 | LF220 | LF250 | LF275 | |
| Rated Power |
KW/ KVA |
64/80 | 80/100 | 96/120 | 108/135 | 128/160 | 144/180 | 160/200 | 180/225 | 200/250 |
| Standby Power |
KW/ KVA |
70/88 | 88/110 | 108/135 | 120/150 | 140/175 | 160/200 | 176/220 | 200/250 | 220/275 |
| Rated Voltage | V | 220V/127V 380V/220V 400V/230V 415V/240V 480V/277V 600V/346V | ||||||||
| Speed | RPM | 1500/1800 | ||||||||
| Rated frequency | Hz | 50/60 | ||||||||
| Engine Model |
1104A- 44TG2 |
1104C- 44TAG2 |
1106A- 70TG1 |
1106A-70TAG2 | 1106A-70TAG3 | 1106A-70TAG4 | 1306A-E87TAG4 | 1306A-E87TAG6 | ||
| Engine Power | KW | 80.7 | 103 | 103 | 136.9 | 153.6 | 179.8 | 196.3 | 228 | 250 |
| Air intake way | Turbo | Turbo | Turbo | Turbo | Turbo | Turbo | Turbo | Turbo | Turbo | |
| Governor |
Mecha nical |
Electr onic |
Mecha nical |
Mecha nical |
Mecha nical |
Mecha nical |
Electr onic |
Electr onic |
Electr onic |
|
| Cylinder | QTY | 4 | 4 | 4 | 6 | 6 | 6 | 6 | 6 | 6 |
| Bore*Stroke |
mm *mm |
105*127 | 105*127 | 100*127 | 105*135 | 105*135 | 105*135 | 105*135 | 117*136 | 117*136 |
| Displacement | L | 4.4 | 4.41 | 4.41 | 7.01 | 7.01 | 7.01 | 7.01 | 8.7 | 8.7 |
| Fuel Consumption |
g/ kw.h |
248 | 248 | 250 | 237 | 246 | 211 | 207 | 208 | 208 |
| Compression Ratio | 17.25:1 | 18.2:1 | 18.2:1 | 18.2:1 | 16:01 | 16:01 | 16:01 | 16.9:1 | 16.9:1 | |
| Alternator Model |
LA- 224G |
LA- 274C |
LA- 274D |
LA- 274E |
LA- 274F |
LA- 274G |
LA- 274H |
LA- 274J |
LA- 274K |
|
| Voltage Regulation | AVR | |||||||||
| Excitation Method | Brushless | |||||||||

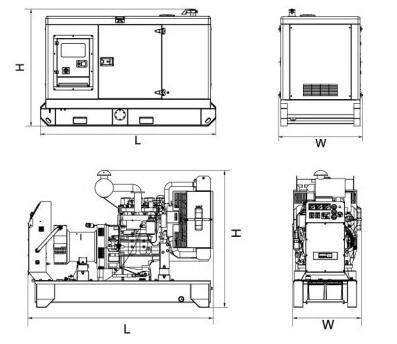

| Open Type Size | mm |
1900* 810 *1165 |
2400* 850 *1170 |
2400* 850 *1170 |
2500* 900 *1300 |
2500* 900 *1300 |
2500* 900 *1400 |
2500* 900 *1400 |
2700* 960 *1600 |
2700* 960 *1600 |
| Open Type Weight | kg | 1180 | 1680 | 1700 | 1950 | 2000 | 2300 | 2480 | 2680 | 2860 |
| Soundproof Size | mm |
2300* 1150 *1300 |
2900* 1150 *1500 |
2900* 1150 *1500 |
2900* 1150 *1500 |
2900* 1150 *1500 |
3000* 1150 *1600 |
3000* 1150 *1600 |
3400* 1300 *1800 |
3400* 1300 *1800 |
| Soundproof Weight | kg | 1580 | 2300 | 2320 | 2750 | 2850 | 3200 | 3400 | 3600 | 3800 |
Product Features:
(1).Full control panel with power indicator light and oil light.
(2).Emergency shutdown for low oil pressure and high water temperature.
(3).Large fuel tank ensure continuous running.
(4).Low noise & vibration.
(5).Compact structure.
(6).Reliable performance.
(7).Easy for installation and maintenance.
(8).50Hz and 60Hz both are available for choice
