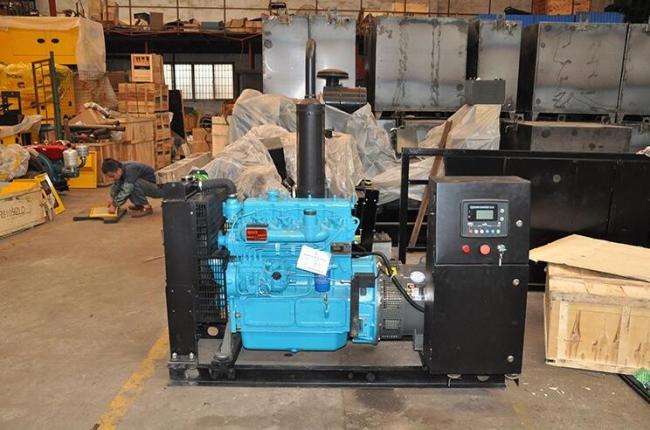

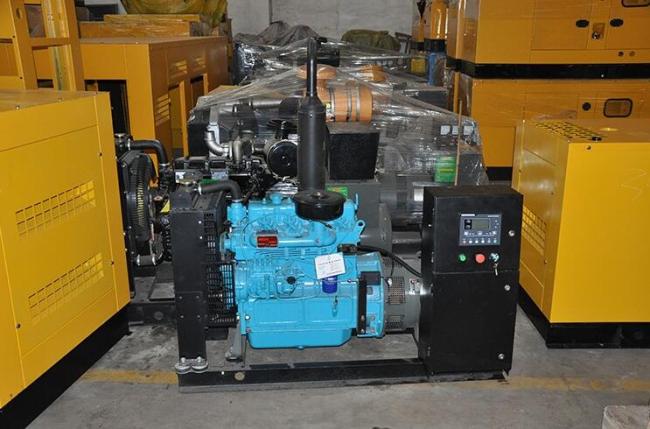

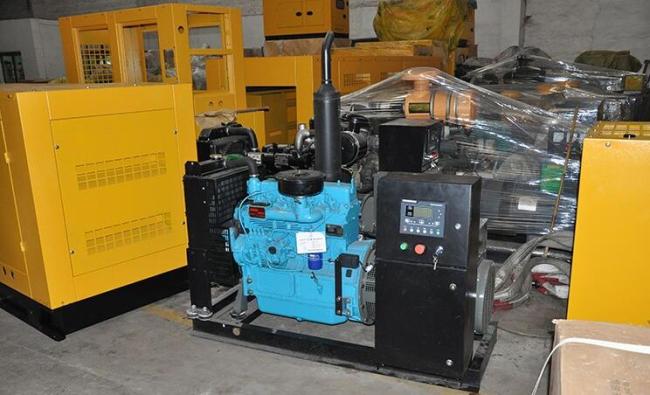

Various Series 30kw Fuel Tank Diesel Power Generator with Weichai Engine CE
Various Series 30kw Diesel Power Fuel Tank Generator with Weichai Engine with CE
Generator Supply Scope:
1.Engine, alternator, radiator, auto control panel.
2.Base frame, base fuel tank, Flexible pipes, flange, exhaust silencer .
3.Battery, battery charger, battery wires, internal cables, circuit breaker.
4.Manual books of engine, alternator, genset, control panel, wires diagram.
5.optional parts: Soundproof
6.ATS (automatic transfer switch), AMF panel, Trailer, Parallel system by your extra choose
Optional Supply
1. ATS (Automatic transfer system)
2. AMF Panel
3. Silent canopy (for silent type only)
4. Fuel Tank (8 hours running)
5. Four Protection
(high temperature auto shutdown, overload automatic shutdown,
low oil pressure automatic shutdown, automatic shutdown phase)
6. Parallel system
7. Remote system
8. Trailer type
9. Soundproof / water proof
10. Lighting tower
Specification of generator:
| 1. Specification of genset | |
| Genset model | LF-30GF-2 |
| Genset power | 30KW / 37.5KVA |
| Rated voltage | 220V |
| Genset current | 54A |
| Rated frequency | 50Hz |
| Rated speed | 1500rpm |
| Power factor | 0.8(lagging) |
| Dimensions(mm) (L×W×H) | 1750x650x1300MM |
| Genset Weight(kg) | 800KG |
| 2. Specification of diesel engine | |
| Engine brand | Powered by Weichai |
| Engine model | 4102D |
| Number of Cylinders | 4 |
| Cylinder arrangement | In "V" |
| Cycle | Four stroke |
| Air Intake System | Turbo, Water Cooling |
| Fuel System | PT type fuel pump |
| Bore×Stroke (mm×mm) | 100 x 115 |
| Displacement (L) | 3.3 |
| Compression Ratio | 18:01 |
| Max. Standby Power at Rated RPM | 36KW / 45KVA |
| Governor Type | Electronic |
| Cooling System | Water cooled |
| Fuel Consumption at 100% Load | 230g/kw.h |
| Total Oil Capacity | 13L |
| Starting Method | DC24V Electrical starting |
| 3. Specification of alternator | |
| Alternator brand | Laurel |
| Alternator model | LA-30 |
| Number of Phase | 3 |
| Connecting Type | 3 Phase and 4 Wires |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire |
| Insulation Class | H |
| Telephone Influence Factor (TIF) | ≤50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±1% |
| Transient State Voltage | ≤-15%~+20% |
Warranty:
All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail)
Our factory warrants that the gensets will be free from defects in materials and workmanship for a period of one year from the date of shipment or 1200 hours, whichever comes first. If the product proves defective during the warranty period,our factory, at its option, will:
(1) repair the product by means of telephone support or depot service at no charge for parts or labor,
(2) provide the new spare parts to replace the broken one for maintenance.
Shipping:
Will be shipped within 7-15 working days aften payment confirmed.
Packaging:
1.For LCL shipping, we will apply plywood case packing which is durable for ocean transport for customers;
2.For FCL shipping, we will only use PE film which is lighter and cost-saving for packing inside the container, and will use steel wires to fix the generators location in the container for customers.
