Rainproof Yuchai Prime Power 650kw Diesel Container Genset Electric Generator with CE ISO
Rainproof Yuchai Prime Power 650kw Diesel Container Electric Generator with CE ISO
Specifications
Supply Yuchai 650kw container rainproof generator
CE & ISO9001-2000 Certificate
12 months warranty
Reliable quality&low price
Yuchai diesel gen-sets is the series that produced by adopting FEV technology from Germany. The units have great performance, compact structure, big power margin, normally the overhaul period must be after 12000 hours.
Technical data diesel generator:
| Genset Model | LFC650GF |
| Prime Power | 650KW/812.5KVA |
| Rated Voltage | 400/230V |
| Frequency | 50/60Hz |
| Power Factor | 0.8(lagging) |
| The regulating rate of steady voltage | ≤±0.5% |
| The regulating rate of instantaneous voltage | ≤-15%/ +20% |
| The time of steady voltage | ≤1.5sec |
| The waving rate of voltage | ≤1.0% |
| The regulating rate of steady frequency | ≤3% |
| The regulating rate of instantaneous frequency | ≤±10% |
| The time of steady frequency | 3sec |
| Dimension (L×W×H) (mm) | 4500*1800*2500 |
| Genset weight (kg) | 7500 |
Diesel Engine:
| Brand | Yuchai |
| Model | YC6C1020L-D20 |
| Number of Cylinders | 6 |
| Rotating Speed | 1500/18000RPM |
| Cycle | Four stroke |
| Type | waste gas turbine boost,direct spurting type |
| Bore×Stroke(mm) | 200*210 |
| Displacement(L) | 39.58 |
| Lubricating Capacity(L) | 180 |
| Speed Governor | Electrical |
| Cooling System | Water-cooled |
| Speed Stability (%) | ≤5% |
| Fuel Consumption at 100% Load | ≤195g/kw.h |
| Starting Method | DC24V Electrical starting |
Alternator:
| Brand | Stamford |
| Model | HCI444E |
| Number of Phase | 3 |
| Connecting Type | Three Phase and Four Lines |
| Number of Bearing | 1 |
| Grading Protection | IP22 |
| Altitude | ≤1000m |
| Exciter Type | Brushless (AVR automatic voltage regulating) |
| Insulation Class | H degree |

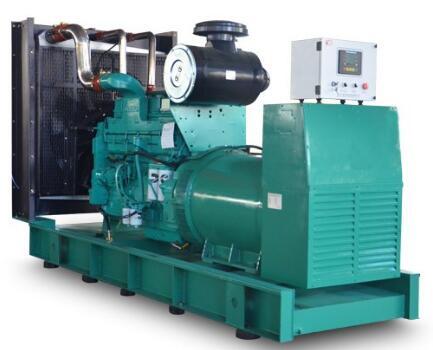

The components of the genset:
(1) Yuchai Diesel Engine;
(2)Stamford Alternator;
(3) Control Panel
Control Panel:
The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection.
