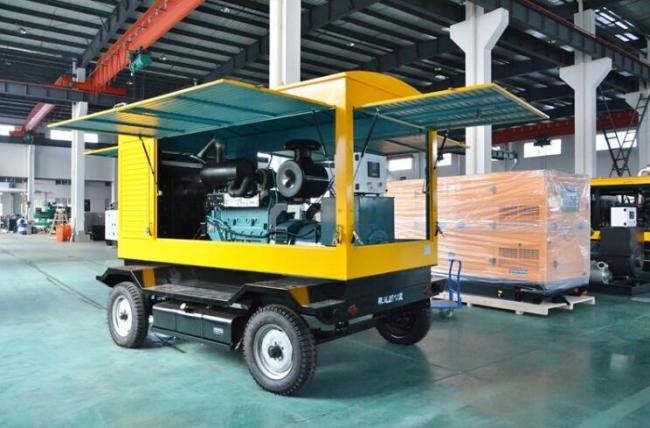

Convenient Type 300kw Diesel Portable Cummins Generator , Ultra Silent Trailer Mounted
Convenient Type 300kw Diesel Portable Cummins Generator , Ultra Silent Trailer Mounted
Advantages:
1. OEM services:Cummins, Perkins, Yuchai engine and Stamford, Marathon, Engga and Farady.
2. Prices: most favorable for clients
3. Free Warranty:13 months/ 1000 hrs
4. Certificates:ISO9001, SGS, CE, CCC, SONCAP,ISO8528, ISO3046, BS5514, GB/T2820-2009
Diesel Generators Parameters:
| The model of the unit: | LFT300KW |
| Power: | 300KW/375KVA |
| Rated voltage: | 400V (Adjustable Voltage) |
| Rated current: | 540A |
| Rated frequency: | 50Hz |
| The factor of rated power | COS=0.8(lag) |
| The regulating rate of steady voltage: | ≤±0.5% |
| The regulating rate of instantaneous voltage: | ≤-10%/ +15% |
| The time of steady voltage: | ≤1.5sec |
| The waving rate of voltage: | ≤0.5% |
| The regulating rate of steady frequency: | ≤3% |
| The regulating rate of instantaneous frequency: | ≤±5% |
| The time of steady frequency: | 3sec |
| The waving rate of frequency: | ≤0.25% |
| The waste of fuel with full load: | 0.24 L/kw.h |
| size(mm): | 3200*1050*1800 |
| weight: | 3000KG |
Cummins diesel engine parameters:
| Engine Brand: | Cummins(CCEC) | |
| Model: | NTA855-G2A | |
| Type: | four strokes, waste gas turbine boost,direct spurting type | |
| Cooling way: | Water cooled | |
| With Type: | L type | |
| Bore *Trip : | 140mm*152mm | |
| Displacement | 14L | |
| Lubricating oil capacity: | 38L | |
| Cylinder: | 6 cylinders | |
| Rotating speed: | 1500r/min | |
| The regulation of rotating speed: | Electronic | |
| Starting way: | DC24V starting with electricity | |
Parameters of Alternator:
| Type: | Brushless (AVR automatic voltage regulating) |
| The connecting way of the phase: | three phases four lines |
| Insulation degree: | H degree |
| Grading Protection: | IP23 |
Standard Specification:
Equipped with 45-50ºC Radiator;
Equipped with 24V DC Start motor;
Equipped with daily base fuel tank for 10-12hours running;
Equipped with vibration Isolators between the engine/alternator and base frame;
Equipped with high performance maintenance-free lead-acid starting batteries and
battery switch;
Equipped with industrial silencer and flexible exhaust hose;
Equipped with high performance MCCB circuit breaker;
Designed to Comply with ISO9001&CE;
Every generator set is subjected to a comprehensive test program which includes 50% load,
75% load, 100% load, 110% load and the checking and proving of all control and safety
shut-down functions;
Our Services
(1) High Performance Products;
(2) Professional Technical Adviser;
(3) 1 Year Or 1000 Running Hours Guaranty;
(4) Effective After-sales Service;
(5) Supply Parity Price Of Consumables.
FAQ
1. Are you a manufacture or trading company?
--We are a Industrial and Trading Company specilized in the field of generator products, and we have got permit of import and export as well.
2. What kind of fuel can be used in your gensets?
--Diesel for diesel gensets, natural gas or biogas for gas gensets.
3. What kind of certificate can you offer?
--ISO, CE.
4. Can you accept OEM?
--Yes, we can accept OEM.
5. What is your delivery time?
--Our normal delivery time is 1 to 3 weeks. But if your order is some special engine and alternator,then the delivery time is longer.
6. What is your warranty period?
--Our Warranty: 1 Year Or 1000 Hours Whichever Comes First.But Based On Some Special Project, We Can Extended Our Warranty Period.
