Air Cooled Silent Portable Electric Diesel Generator Single Phase for Home 220V
Air Cooled 5kw Silent Portable Electric Diesel Generator Single Phase for Home 220V
Product Description
* Generator model: 5kw Silent Portable Electric Diesel Generator for Home(LR6500SE)
* With 10HP HR186F diesel engine, ensure a rated output 4.6KW and max. Output is 5KW; Canopy model control the noise under 72 DB; Adopted by many familiy.
* All spare parts pass Strict and Accurate raw material detection(IQC); All finished products detection Match ISO standard;
* Warranty: Running 500 hours or one year. Can support free spare parts for repairing during warranty time also low than market price spare parts out of warranty time!

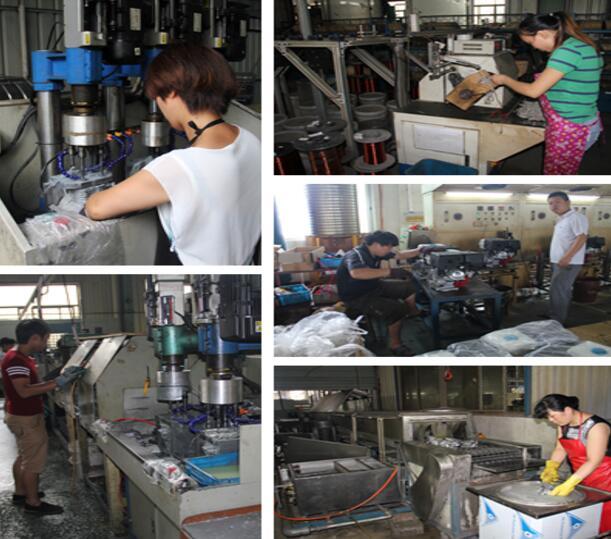

* Modern Production Workshop, strict producing process, ensure a Fast and High-quality products output
* 100% copper good brand alternator, every spare parts suppliers are choosed extremely strict, to control the quality well.
As a professional manufacture of diesel engine(4-22HP), diesel generator(1.8-1000KW), diesel water pump(1.5-4INCH), small construction machine and so on.
Just send us your inquiry with what u need, we will highly appreciate it!
Technical Data:
| Model | LR6500SE | |
| GENERATOR | Frequency (HZ) | 50HZ |
| Max.output (KW) | 5 | |
| Rated output(KW) | 4.6 | |
| Rated AC Voltage(V) | 220V | |
| Power Factor | 1 | |
| DC output (V) | 12V/8.3A | |
| Phase | Single Phase | |
| Alternator Type | Self-excited,2-pole, Single alternator | |
| Starting System | electric | |
| Noise Level (Dba/7m) | 68-72 Db | |
| Fuel Tank Capacity (L) | 16 | |
| Continuous Running Time (hr) | 7.8 | |
| ENGINE | Engine Model | HR186F |
| Engine Type | single cylinder, vertical,4 stroke, air-cooled diesel engine | |
| Bore×Stroke | 86×72 | |
| Fuel Consumption rate g/kw/h | ≤280 | |
| Fuel | 0# or -10# light diesel oil | |
| Lubrication Oil Volume (L) | 1.65 | |
| Combustion System | Direct Injection | |
| STANDARD FEATURES |
Voltmeter | YES |
| AC Output Socket | 2 | |
| AC Circuit Breaker | YES | |
| Oil warning Light | YES | |
| Oil Alert | YES | |
| OPTIONAL FEATURES |
Dccircuit breaker | OPTIONAL |
| Calculagraph | OPTIONAL | |
| Big wheel | OPTIONAL | |
| Three phase voltage | OPTIONAL | |
| Current meter | OPTIONAL | |
| ATS | OPTIONAL | |
| Remote control | OPTIONAL | |
| Welding | NO | |
| DIMENSIONS | Dimention(LxWxH)(cm) | 95*56*76 |
| Net Weight(kgs) | 155 | |
| 20FT loading pcs 20 | 72 | |
| 40FT loading pcs 40 | 144 | |
We Believe:
WORKSITE, originated from USA, dedicates itself to develop and manufacture high quality power tools and equipment with affordable price. We own two factories and three warehouses, and cooperate with several alliance ones. Our thorough management system, including manufacture, product R&D, uniform packaging, and quality assurance processes, enables us to successfully set up the world's largest retail chains.
Our Services
1. Reply to your ASAP, not more than 24 working hours.
2. Customized design, OEM & ODM are available.
3. Products will be delivered on time.
4. Strictly product checking before shipment, guaranteeing product's safety.
