39kw Articulated Front Loader With Single Bucket SDLG 926
Easy Operating MCL926 mini wheel loader with good price & Farming Machinery SDLG 926 wheel 1.5ton boom loader

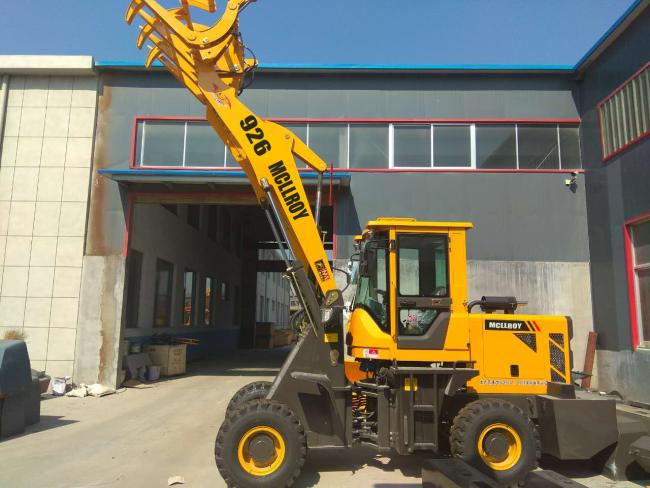

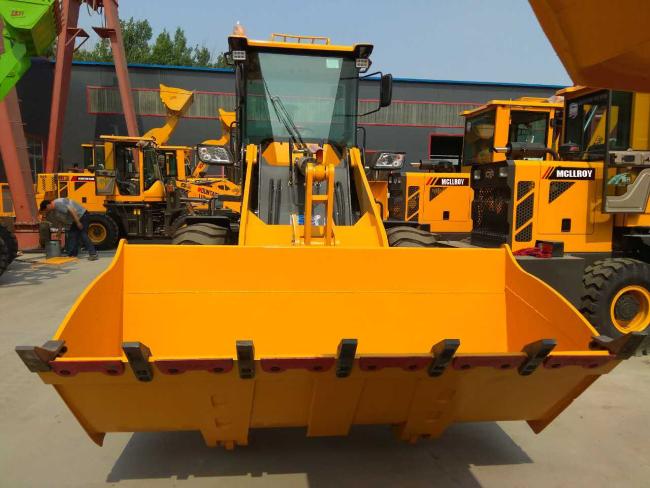

MCL926 Wheel Loader is a kind of front wheel loader with single bucket ,articulated and hydraulic unloading. It has been developed and designed in accordance with user requirements, reference models after absorption of domestic and similar structural features and advanced technology.
It is widely used in the construction, municipal engineering, urban and rural gardens, lime, sand, cement factories, mines and other enterprises and institutions and departments. It is paticularly applied to the narrow space for the loading operation of stone,sand and other construction materials.The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.
1. Specification:
| Model | MCL926 | |
| Rated Load | kg | 1500 |
| Dipper capacity | M³ | 0.9 |
| Max.Dump Clearance | mm | 3200 |
| Dump Reach | mm | 800 |
| (L*W*H) | mm | 5500*1620*2750 |
| Engine Model | YN490 | |
| Rated power | kw | 39 |
| speed/min | rpm | 2400 |
| Gear Box | MT(3F+2R) | |
| Alex | ISUZU | |
| Brake | Brake level | |
| Operating Weight | kg | 3000 |
| Articulated | Articulated | |
| Tyre Size | 20.5-16 | |
| Joystick | Machanical | |
| Time meter | YES | |

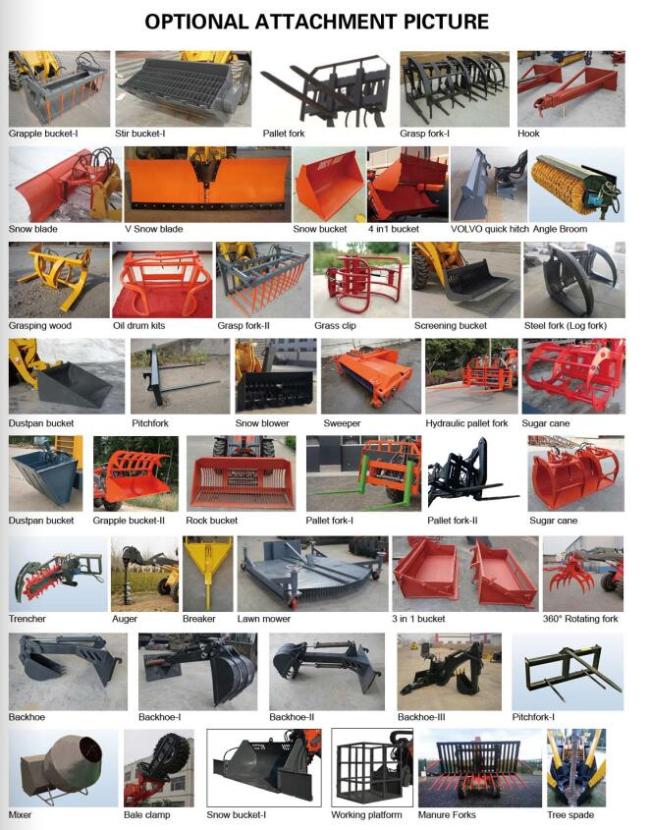

| Optional |
Time meter Air conditioner Hydraulic pilot |
