Small front bale grapple wheel loader with big 100L/min hydraulic output 1.0 cbm

bucket for attachments

55kw Yanmar Engine Small Front Bale Grapple Small Grader Blade Bulldozer Telescopic Wheel Loader 920 For Tractor

I. Loader Description:

1. Hydraulic and electric output offer multiple powers to the attachments

2. Hydraulic quick hitch plus more than 40 different attachments, offer a solution for all your work needs.

3. Optional rear output and 3 point hitch, can turn into a tractor with front loader, both front and rear end can hook and drive attachments.

II. Specifications:

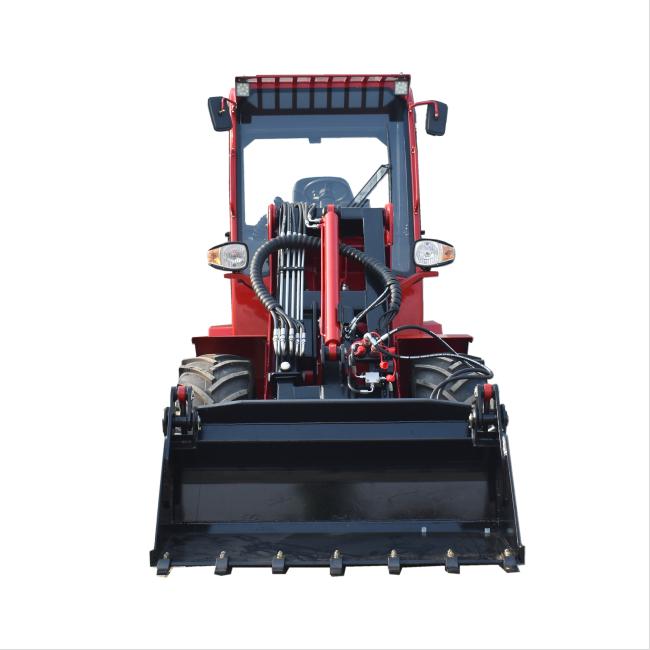

Model: M920 telescopic articulating loader

Dimension with cabin (LxWxH):3600 x1500 x 2350mm

Max. lifting height:4000mm
(boom retract)

Bucket capacity:1.0 cbm

Rated loading capacity:2000kg

Min. turning radius:3100mm

Turning angle:45 degree

Min. ground clearance:330mm

Speed:0-12-24km/h two speed

Weight with bucket:2600kg

Standard tire:31X15.5-15

Working oil flow: 50L/ min *2

Engine:Yanmar/Kohler (EPA Tier 4 final)

Rated power:55 kw

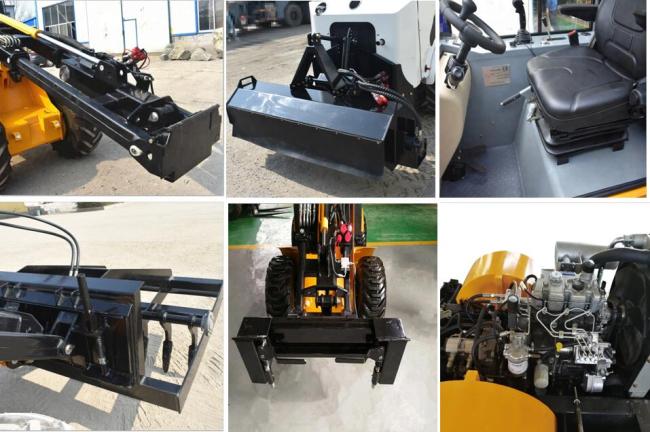

III.Details:

Telescopic boom/quick coupling/hitch/output ;

Rear 3 point hitch/output;

Skid steer plate (Manual/Hydraulic quick hitch) ;

Skid steer attachment adapter;

Inside cabin ;

Tiltable cabin;

IV.Package and Delivery:

Packaging Details:  Drive into container directly, loade easy and quick;
                               1 sets/20'GP; 3 sets/40'HQ

Port:                        China main port

Lead Time :             Quantity(Sets)1 - 10>10Est. Time(days)30To be negotiated
