Yanmar Engine 0.25cbm Bucket 3593mm Farm Wheel Loader
Price:
USD 3000-5000 / SET
MOQ:
1 Set
Delivery Time:
Negotiable
Brand:
MCLLROY
Product Description

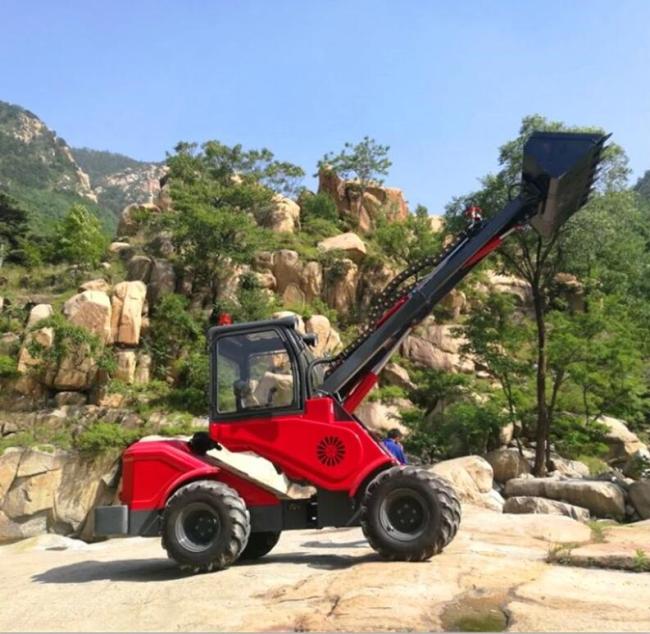

Farm wheel loader with Yanmar Engine 0.25cbm bucket
I. Loader Description:
Compact design, low centre of gravity, tight turning radius and powerful performance - these features have characterised the MY25 model for years and still determine the immense success of the machines. The MY25 model effortlessly fulfil any work task and work quickly, flexibly and safely - a MY25 model is simply always ready for use.
MCLLROY's smallest mini loader, the MY25mini loader, is an adaptable and versatile machine for the private user, but also withstands tough professional jobs. With its tight turning radius and compact construction, it is very efficient in confined spaces.
MY25 mini loader has high traction in relation to its weight. The drivetrain is hydrostatic and is controlled by a direction pedal.
Strong lift cylinders
MCLLROY installs two lift cylinders in MY25/MY35 wheel loader models. This guarantees that the load distribution is always optimally transferred to the loading arm. In addition, the entire loading system gains stability. The size of the lift cylinder is adapted to the respective size of the machine.
Good all-round visibility - ergonomic workplace
Plenty of legroom, clearly arranged instrument clusters, a comfortable driver's seat and an optimal view of the attachment. A workplace that motivates and fully supports the operator.
Brake-inch pedal
The hydrostatic all-wheel drive is combined with the brake pedal for MCLLROY machines. By "inching,"this makes it possible to crawl until the travelling operation comes to a standstill. With the partially depressed brake-inch pedal, you can drive slowly in crawl speed at full engine speed precisely to the millimetre and at the same time lift quickly. If the pedal is pressed further, the machine is braked. The advantage of the brake-inch pedal lies in the optimal power-output distribution of the engine rated power. In addition, it is not possible to stall the machine
MCLLROY's smallest mini loader, the MY25mini loader, is an adaptable and versatile machine for the private user, but also withstands tough professional jobs. With its tight turning radius and compact construction, it is very efficient in confined spaces.
MY25 mini loader has high traction in relation to its weight. The drivetrain is hydrostatic and is controlled by a direction pedal.
Strong lift cylinders
MCLLROY installs two lift cylinders in MY25/MY35 wheel loader models. This guarantees that the load distribution is always optimally transferred to the loading arm. In addition, the entire loading system gains stability. The size of the lift cylinder is adapted to the respective size of the machine.
Good all-round visibility - ergonomic workplace
Plenty of legroom, clearly arranged instrument clusters, a comfortable driver's seat and an optimal view of the attachment. A workplace that motivates and fully supports the operator.
Brake-inch pedal
The hydrostatic all-wheel drive is combined with the brake pedal for MCLLROY machines. By "inching,"this makes it possible to crawl until the travelling operation comes to a standstill. With the partially depressed brake-inch pedal, you can drive slowly in crawl speed at full engine speed precisely to the millimetre and at the same time lift quickly. If the pedal is pressed further, the machine is braked. The advantage of the brake-inch pedal lies in the optimal power-output distribution of the engine rated power. In addition, it is not possible to stall the machine
Advantages:
Travel speed is higher at 14km/h;
Rated loading capacity is bigger at 800kgs around;
max dumping height is higher 3593mm;
Top quality components like sauer-danfoss,bosch-danfoss,yanmar,ktr,Hydro-control,Knott and ARGO etc....;
Easier and simpler maintenance tilting driver's cab;
Bigger driver space and adjustable steering wheels;
Standard foot brake pedal and handle brake systtem;
Front quick hitch help it connect a lot of attachments
Compact design, low centre of gravity, tight turning radius and powerful performance ;
Full 360 degree visibility, and flexible articulated frame ;
4WD wheel drive system,and inching brake system as standard;
Self-levelling front boom always keep the fork or bucket level to the ground
More than 60kinds of attachments for customers' choice.
Travel speed is higher at 14km/h;
Rated loading capacity is bigger at 800kgs around;
max dumping height is higher 3593mm;
Top quality components like sauer-danfoss,bosch-danfoss,yanmar,ktr,Hydro-control,Knott and ARGO etc....;
Easier and simpler maintenance tilting driver's cab;
Bigger driver space and adjustable steering wheels;
Standard foot brake pedal and handle brake systtem;
Front quick hitch help it connect a lot of attachments
Compact design, low centre of gravity, tight turning radius and powerful performance ;
Full 360 degree visibility, and flexible articulated frame ;
4WD wheel drive system,and inching brake system as standard;
Self-levelling front boom always keep the fork or bucket level to the ground
More than 60kinds of attachments for customers' choice.

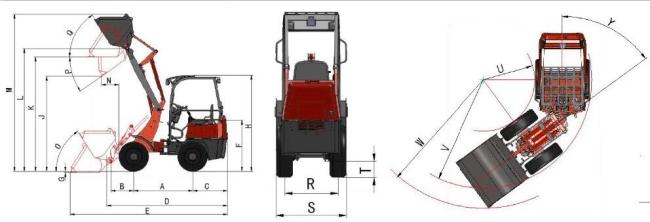

II. Specifications:
We uses TOP QUALITY BRAND components :
Japan Yanmar diesel engine,Danish Sauer Danfoss brand Hydraulics System;(Steering Gear, Pumps, Motors, etc.);
Italian HC brand Multi-way Valve;German Gessmann brand Joystick;German Knott brand Brake;German Argo brand Hydraulic Oil Filters;Italian Fast brand Quick Couplers

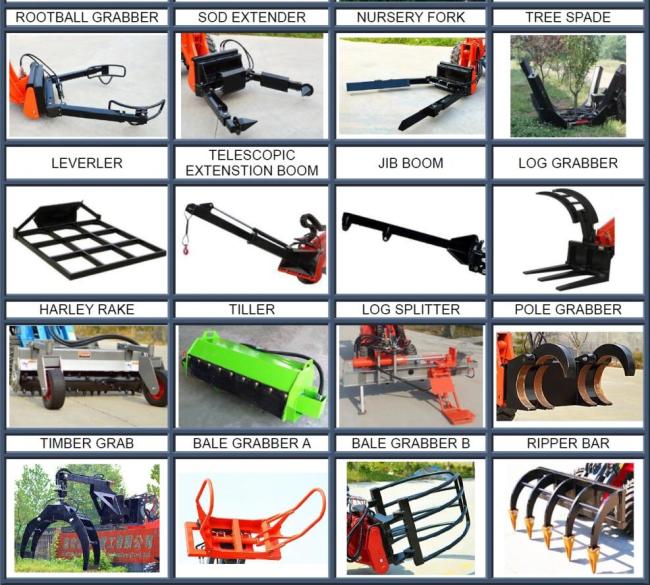

III.Attachments:

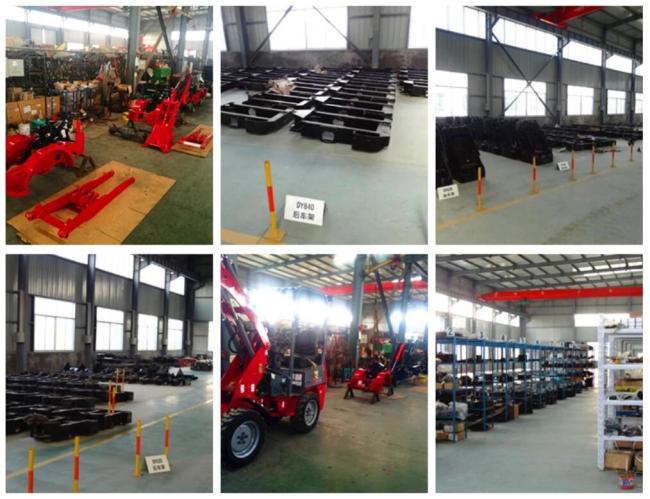

IV.Workshop:

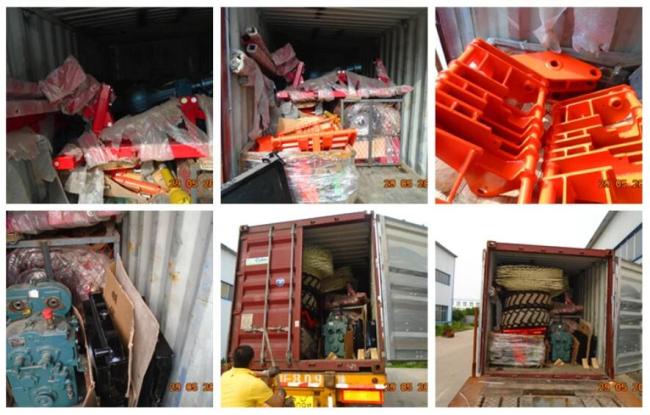

V.Package and Delivery:
Packing: 4 units in 20GP container, 8 units in 40HQ container.
Spare Parts Delivery as below :
