LC OM3 50/125um Duplex Fiber Optic Patch Cord Aqua Color Lc Sc Fiber Patch Cable
LC OM3 50/125um Duplex Fiber Optic Patch Cord , Aqua color cable
Description:
Optical patch cord is a length of optical fiber with two ends adding connectors to connect beam path.
TTI patch cords assembled with various types of connectors (such as FC, SC, ST, LC, MU, MTRJ,MPO etc.)
There are three kinds of polishing ferrule end-face: PC, UPC and APC .We employ advanced technique and equipment to manufacture so as to ensure the high quality of mass production.
Features:
Low Insertion Loss
High Return Loss
Good Repeatability
Good Exchangeability
High Temperature Stability
Application:
Optical Fiber Communication Systems
Optic-fiber Data Communications
Optic-fiber Data Communications
Optic-fiber Access Networks
LAN Optic-fiber Sensors
Specification:
Multimode fiber optic patch cord | |||
Fiber type | OM1(62.5/125μm) ; OM2(50/125μm) ; OM3(50/125μm-150; 50/125μm-300) | ||
Operating Wavelength | 850 nm | ||
Jacket material | PVC/LSZH/OFNP | ||
Diameter of fiber | 0.9/2.0/3.0mm | ||
Contector | SC LC or customized | ||
polishing method | PC | UPC | APC |
Insertion loss (IL) | ≤0.2dB | ≤0.2 | ≤0.3 |
Return loss (RL) | ≥45dB | ≥50dB | ≥60dB |
Repetitiveness | ≤0.1dB | ||
Exchangeability | ≤0.2 | ||
Durability | >1000 times | ||
Operating Temperature(ºC) | -40~85 | ||
Storage Temperature(ºC) | -40~85 | ||
length | customized | ||
Order Information:
Fiber Optic Patch Cord | |||||
Connector Type | Ceramic Ferrule | Cable Diameter | Simplex/Duplex | Single mode | Length |
| FC | PC/UPC/APC | Φ0.9, Φ2,Φ3 | Simplex/Duplex | SM/MM | Customized |
| SC | PC/UPC/APC | Φ0.9, Φ2,Φ3 | Simplex/Duplex | SM/MM | Customized |
ST | PC/UPC | Φ0.9, Φ2,Φ3 | Simplex/Duplex | SM/MM | Customized |
LC | PC/UPC | Φ0.9, Φ2 | Simplex/Duplex | SM/MM | Customized |
MU | PC/UPC | Φ0.9, Φ2 | Simplex/Duplex | SM/MM | Customized |
MTRJ | PC/UPC | Φ0.9, Φ2 | Duplex | SM/MM | Customized |

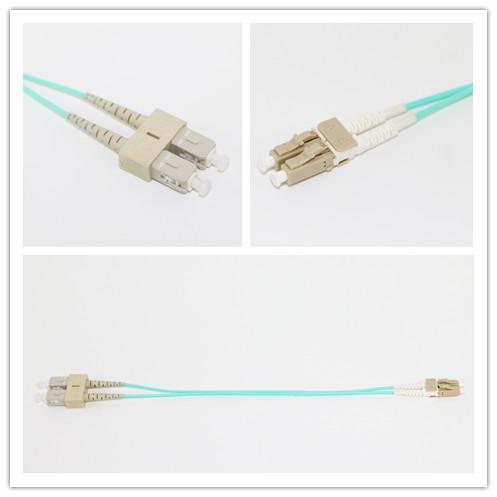

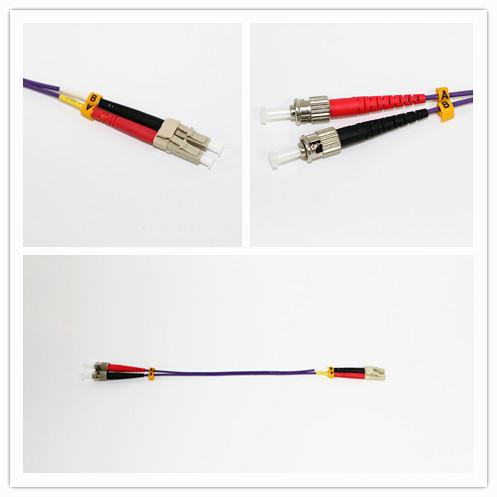

Product Picture:
