Description

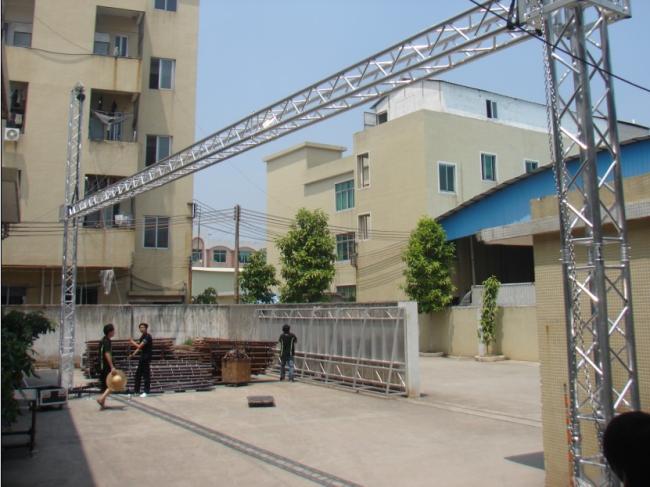

Goal Post Truss Using to hang the line arrey Speaker , LED screen , Poster or Background cloth.It mainly used for small , medium event, exhibition , mobile show , background truss and so on. Its advantage is very simple and fast.
Specification
Type: Spigot, bolt
Shape: Goal Post
Color: Silver or customized
Certification: TUV
Package: Carton
Main tube: 50*3mm
Brace tube: 20*2mm, 25*2mm, 30*2mm
Length available: 0.5m—4m
All vice tube,four sides inclined tube;
Main Tube:Φ50*3mm;
Vice Tube:Φ50*3mm;
Brace:Φ25*2mm;
The Largest Span:20m;
Symmetrical Load:800kg.
| SQB40 Allowable Loading | |||||
| 6082-T6 50*3mm tube as main tube 30*2mm as brace tube | |||||
| Span | LOAD ALL | Unitformly distributed load(UDL) | Centre point load(CPL) | DEFLECTION | |
| m | ( ft ) | kg | kg/m | kg | (mm) |
| 4 | 13.1 | 932 | 232.8 | 465.6 | 3 |
| 5 | 16.4 | 932 | 186.4 | 465.6 | 4 |
| 6 | 19.7 | 931.2 | 155.2 | 465.6 | 7 |
| 7 | 23 | 929.6 | 132.8 | 464.8 | 9 |
| 8 | 26.2 | 928 | 116 | 464 | 18 |
| 9 | 29.5 | 928.8 | 103.2 | 464 | 22 |
| 10 | 32.8 | 928 | 92.8 | 464 | 40 |
| 11 | 36 | 925.5 | 84.8 | 464 | 54 |
| 12 | 39.2 | 921.6 | 76.8 | 460.8 | 73 |
| 13 | 42.6 | 852.8 | 65.6 | 426.4 | 89 |
| 14 | 45.9 | 795.2 | 56.8 | 397.6 | 107 |
| 15 | 49.2 | 744 | 49.6 | 372 | 123 |
| 16 | 52.5 | 691.2 | 43.2 | 345.6 | 140 |
Product Features
Product Advantages
1. Aluminium material-durable and absolutely environmental friendly.
2. Light weight-easy to carry around, store and transport.
3. High quality-strong loading capability.
4. Unique design-with perfect craftsmanship,owns technicians design for your special request.
5. Favorable price-with competitive price under the assurance of quality.
