Laboratory Universal Dual Arm Tensile Strength Test Machine Computer Servo

Price Negotiable
Price: Negotiation
MOQ: 1 set
Delivery Time: 15 working days
Brand: HTI
Product Description

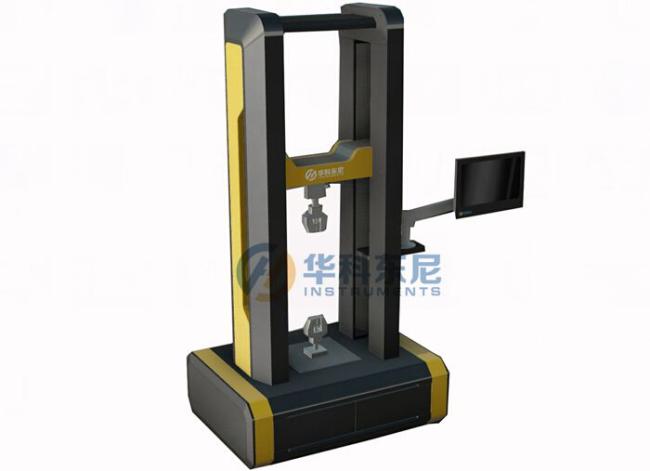

Universal Dual Arm Computer Servo Tensile Strength Testing Machine





Description:



This tensile machine can do various tensile testing in the field of rubber, plastics,chipboards, foam, plastic, film, flexible packaging, pipes, textiles, fibers, nanomaterials, polymers, composite materials, synthetic materials, packaging, paper, wire and cable, fiber optic cable, wirecables, seat belt, seat belt, leather belt, shoes, tape, polymer, copper, spring steel wire, stainless steel, castings, brass, non-ferrous metals, car parts, alloys and other non-metallicmaterials and metallic materials tensile, compression, bending, tearing, and 90 ° peel, 180 ° peel, shear adhesion, pull-out strength, an extension of the elongation test.





Advantages:



1. Speciality in testing equipment

2. Various products to choose from

3. Accept customization

4. Excellent after-sale service





Specifications:



Maximum force capacity

100N,200N,500N,1KN,2KN,5KN,10KN,20KN,50KN,100KN(choose)

Force measurement accuracy

0.5%

Test stroke

1000mm, effective test width: 400 mm, or specified per customer

Test force loading the measuring range

0.4% -100% FS

Resolution

maximum test force of 1/200000

Test speed

0.01 - 500mm / min. or specified per customer

Displacement measurement accuracy

± 0.5% of indication

Test force control rate adjustment range

0.05% -5% FS / S

Control accuracy

± 0.5% when the control rate  ≥ 0.05% FS / S

Net Weight

150kg, Gross weght:220 kg (after wooden package)

Package wooden box size

67 x 102 x 193cm





Standard:

 ASTM D751,ASTM D882,ASTM D1117,ASTM D1445,ASTM D1593,ASTM D1683,ASTM D2209,ASTM D5034,ASTM D5053,ASTM D1424,ASTM D2212,ASTM D2262,ASTM D2261,ASTM D4704,ASTM D4705,ASTM D5733,ASTM D5734,ASTM D2207,ASTM D412,ASTM D638     ASTM D3137,ASTM D3574,ASTM D624,ASTM D3574,ASTM D4964,ASTM D2061,ASTM D5169,ASTM D5170,ASTM D2558,ASTM D413
