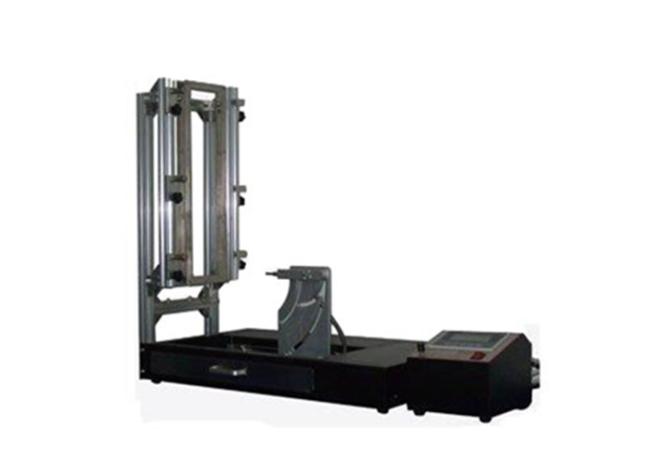

Lab Flammability Test Equipment For Textile Garment Fire Resistance Testing

Lab Flammability Test Equipment For Textile Garment Fire Resistance Testing

Lab Flammability Testing Equipment For Textile Garment Fire Resistance Testing
Model: HTB-003
​​​​​​​

Detailed Description:
This tester is suitable for single component or multic-omponent (coating, quilting, multilayer, laminated products and similar) clothing, curtains and a large tent including cold tent and door cover textiles vertical to the properties of flame spread. This tester can only be used for evaluation of control in the laboratory under the condition of material or composite performance after contact with flame, The test results do not apply to the status of hypoxia occasion or heating time is too long in the fire.


Specification:
Test sample: 560mmx170mm
Flame level: 0~60mm adjustable
Burner angle: Included angle with level line: 0° /22.5° /90° Adjustable
Firing time: 5 s
Burning gas: Butagas
Size(WxDxH): 93x65x88cm
Weight: 30Kg
Powr: 1 AC 220V 50Hz


Standards:
GB/T 5456, 8746, BS EN ISO 6940, 6941, 15025, BS 5438
