High Precision Toys Comprehensive Laboratory Testing Equipment EN71-2
High Precision Toys Comprehensive Laboratory Testing Equipment EN71-2
Description:
It is used for testing the flammbility of toys,children clothes,evalute the following toys flammability speed,time.
Testing the child clothing or the toy and accessories’s flammability , appraises the following toy type the repidity of the flammability and time
The PLC control, the time is accurate, English man-machine contact surface
The different test method provides different sample jig
clamps are easy to operated
The jig may adjust willfully, suits different sample
Comply to standard EN71-2 2011
Features:
This tester was designed according to EN71-2011 standard, both sell to overseas and dometic market.
1. Adopt the mininsize gas cylinder system, the instrument can be moved, take up small space. The user also can connect big gas cylinder.
2. The gas system is controlled by PLC, ignite and continue burning time are accuracy,
3. All frames can be adjusted to meet different testing need.
This instrument applies to test the performance of flame retardardant of toys for children, completely applies to EN71-2-2008.
Specifications:
| Test Chamber | 37cmX22cmX35cm, top gas vent diameter: 12.7mm*12 |
| Clamp | 2.5” |
| flame length | 16mm |
| firing time | 30s |
| Specimen dimension | 70mmx70mm |
| Dimension | 42x26x52cm (L×W×H) |
| Weight | ≈20Kg |
| Power | 1∮ AC 220V 50Hz 3A |
| Standard | ASTM D4151 |
Advantages:
1. Speciality in testing equipment
2. Various products to choose from
3. Accept customization
4. Excellent after-sale service

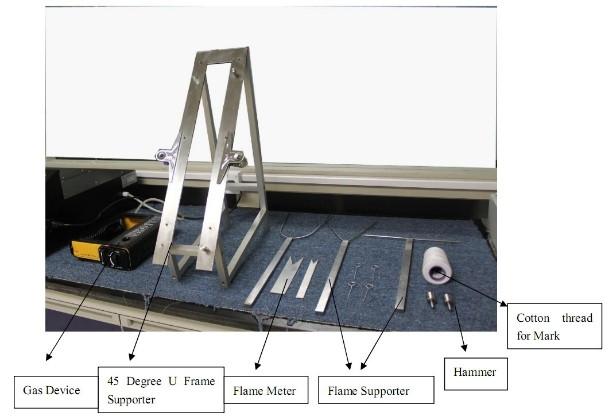

Accessories:
Micro gas tanks , Micro gas cylinders 2pcs, clamp 1set, clip 2pcs, power line 1pcs
