Description:
Luggage mileage life testing machine is use for wheel suitcase, travel bags, baby carries and walking test, etc. It mainly tests the quality of the luggage when walking around. From the test mileage, test speed, we can know the heat rupture of wheel, loss volume of the wheel, any deformation of the integral construction
Theory:
Luggage mileage life testing machine According to the test specification production, Fix the handle of suitcase on the testing hook and tighten with string; then load a certain weight into the suitcase and start the test with setted time and speed, so as to know the performance of wheels and the full structure.
Design Criteria
Design criteria: QB/T 2920-2007
Equipment Instruction
Constitution
Introduction:

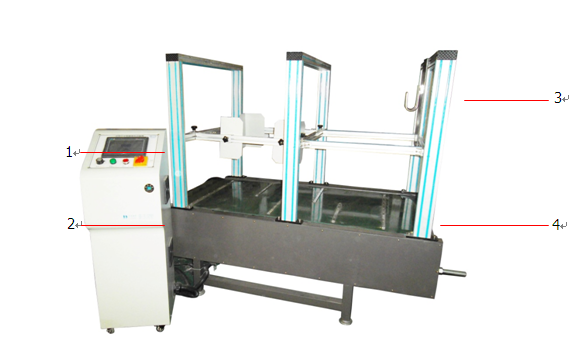

1:control panel 2:control cabinet 3:leather baggage hook 4:test platform

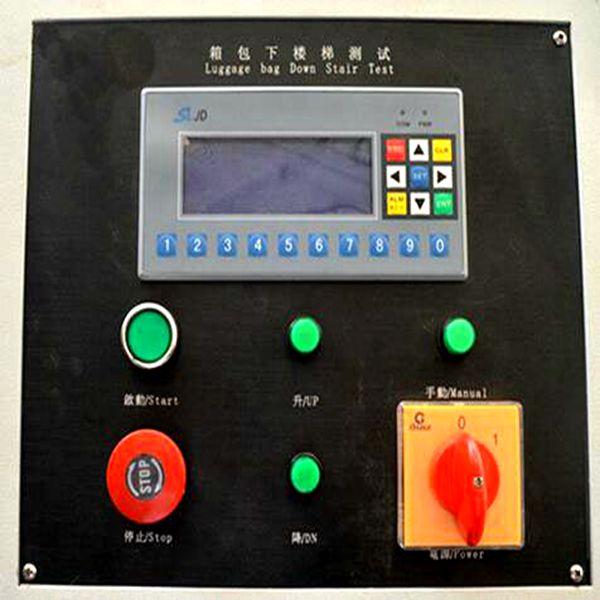

Control panel
Panel key instruction:
1, Power:Main switch
2, Start:enter the test
3, Stop:stop the test
4, Speed control knob:control the speed
5, LCD touch screen : adjust the system in the form of touching
After-service
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
