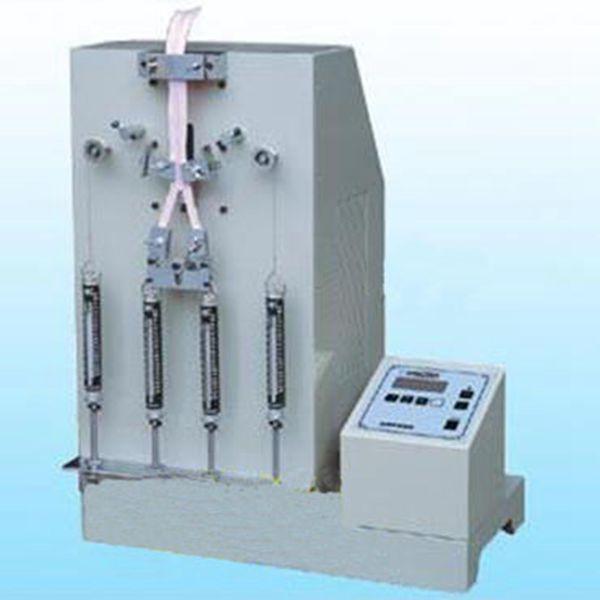

75mm LCD Suitcase 1/4HP Electric Zipper Pull Tester Luggage Testing Equipment
75mm LCD Suitcase Tester , 1/4HP Electric Zipper Pull Tester Luggage Testing Equipment
Description:
Zipper Pull Tester applies to test the zipper under the transverse-oriented and long direction stress with given times.
Zipper Pull Tester applies to test the zipper under the transverse-oriented and long direction stress, test whether the zipper can bear the pulling with given times .During the test, the zipper head will be brought along with the same speed, with 30 times per minute until it pulled with given times..
Specification:
|
Stroke |
75mm |
|
Motor |
1/4HP |
|
Counter |
LCD, 0-999,999 |
|
Machine Size |
280*550*660mm |
|
Weight |
35KG |
|
Power |
1, AC220V, 3A |
|
Transverse clamping device width |
25mm |
|
Total weight of clamping device |
0.28-0.34kg |
|
Distance between two device |
6.35mm |
|
Opening Angle of sample |
60° |
|
Interdigitation angle of sample |
30° |
75mm LCD Suitcase Tester , 1/4HP Electric Zipper Pull Tester

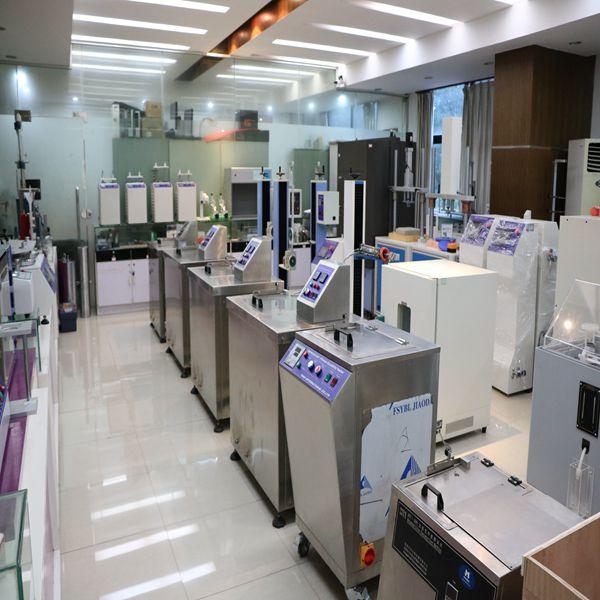

Our company Showroom:
