Single Arm Computer Servo Tensile Strength Tester Machine Full Computer Control

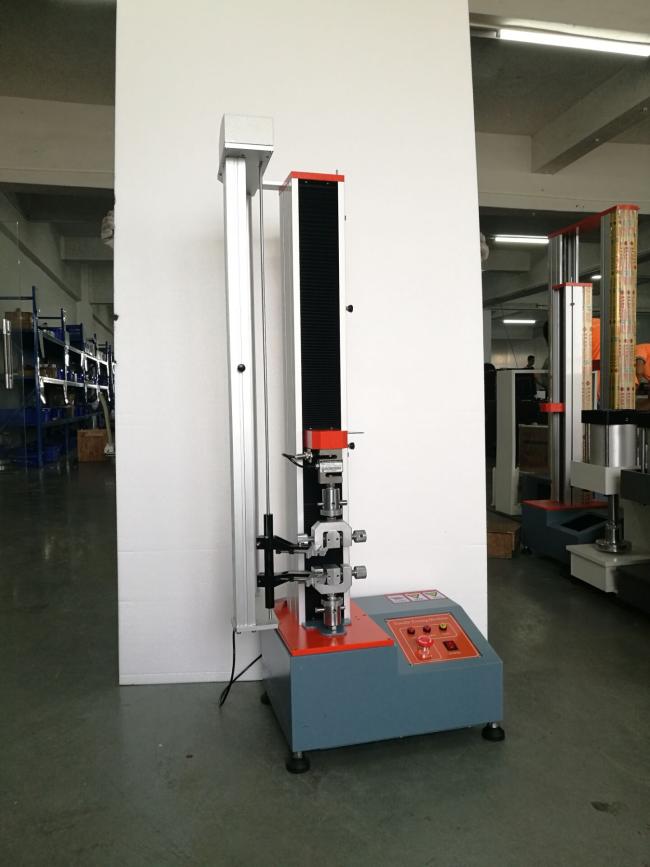

HTP-001B Single Arm Computer Servo Tensile Strength Testing Machine with extensometer
Description:
This tensile machine can do various tensile testing in the field of rubber, leather products, plastics, chipboards, foam, plastic, film, flexible packaging, pipes, textiles, fibers, nanomaterials, polymers, composite materials, synthetic materials, packaging, paper, wire and cable, fiber optic cable, wire cables, seat belt, seat belt, leather belt, shoes, tape, polymer, copper, spring steel wire, stainless steel, castings, brass, non-ferrous metals, car parts, alloys and other non-metallicmaterials and metallic materials tensile, compression, bending, tearing, and 90 ° peel, 180 ° peel, shear adhesion, pull-out strength, an extension of the elongation test.
Use Multi-threaded parallel processing make the software can display “Force-Displacement”, “Force-Time” , “Displacement-Time” and “Stress-Strain” curves simultaneously, so you can switch to any graph which you want to see and check the user settings.
Opening testing results edit method make user get any wanted test data. Up to 400 (such as maximum force,minimum force,fracture force,peel strength,tensile strength,shear strength,tear strength,maximum deformation,yield strength,elongation,elastic modulus,ring stiffness,non-proportional elongation,minimum force range,average force range and elongation under constant force) can be called by user.
Standards:GB,ISO7500/1,JJG475-88,ASTME4,DIN5122,JISB7721/B7733,EN1002-2,BS1610,CNS9471/9470 and other standards etc.
Standard accessories:
Tensile strength fixtures 1 set,
Computer test software 1 set,
English manual book 1 pcs.
Advantages:
1. Speciality in testing equipment
2. Various products to choose from
3. Accept customization
4. Excellent after-sale service
Tensile Machine Specifications:
| Capacity | 200KG (2,5,10,20,50,100,200kg for option) |
| Effective load range | 0.4％～100％ |
| Load accuracy | ±0.5％ of value |
| Display | Computer Test Software |
| Units | Kg,lb,N |
| Data sampling frequency | 200times/sec |
| Load solution | 1/±250000 of max load |
| Load sensor | Pull and press sensor(max load) |
| effective test width | 150mm |
| Effective stroke | 500mm |
| Test speed | 50-500mm/min |
| Displacement accuracy | ±0.5％ |
| Returning function | Manual or automatic two option, after test the up fixture will return to the initial position |
| Safety device | electronic process for limit procession |
| Overload protection | If 10％ over than max load,machine will automatic stop for protection |
| Result print | Outside printer that connect to computer |
| Grip | tensile fixture 1 set |
| Machine Size | 420×350×1520mm |
| Machine weight | Approx 50 Kg |
| Power | 220V±10% 0.2KW/0.4KW |
