Universal Wear Tester (Stoll Quartermaster) , advanced type-big LCD touch screen

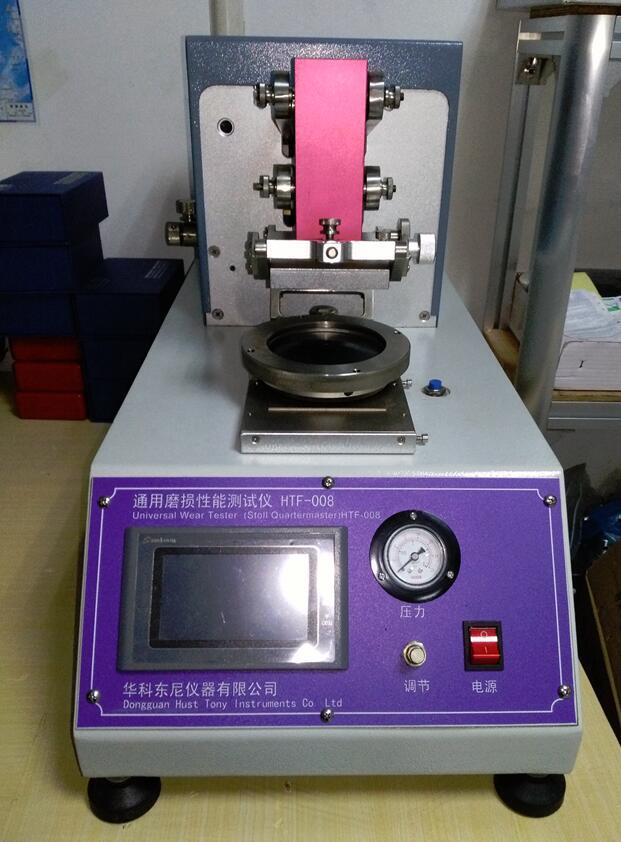

HTF-008 Universal Wear Tester (Stoll Quartermaster) -UTW Machine

Description:

Advanced Type-- Touch screen control,easy operation

To determines the wear and abrasion resistance of fabrics used in clothing, footwear and industrials, Supplied with surface abrasion head(inflated diaphragm method )and flex abrasion head as well as necessary weights and initial supply of abrasions. Fitted with built-in timer and mechanical cycle counter.

Surface Abrasion test

Flex Abrasion test

Edge and fold abrasion test

Depth abrasion test

Advantages:

1. Speciality in testing equipment

2. Various products to choose from

3. Accept customization

4. Excellent after-sale service

Specification:

Display: advanced type-big LCD touch screen

Reciprocating Speed: 125±5rpm

Stroke: 25±2mm

Loads:2.0lb, 1.5 lb, 1.0 lb, 0.5 lb

Rubber membrane: Proof Pressure 7 kgf/cm2,thickness 1.40±0.25mm

Pressure range :1～9psi

Test Environment: relative Humidity: 65% + / -2; relative humidity: 20 + / -2 degrees

Specimen diameter: 112mm diameter

Sandpaper hole diameter: 3.2mm

The next fixture base itinerary: 30mm

Dimension: 480×360×715 cm

Weights: Basic type 53kg; Advanced type 43kg

Power: 220V 50Hz

standards:AATCC 119;AATCC 120;ASTM D 3514;ASTM D 3885;ASTM D 3886;FTMS 191-5300, FORD EFB 15J2/BN 112-01,JIS L 1096 JIS L 1018 and 5302.

Accessories:

General wear tester 1 set.

Tension weight 10 pcs.

Pressure weight 10 pcs.

Deflection test fixture 1 set.

Flat test fixture 1 pcs.

Depth rubbing test fixture 1 pcs.

Power line 1 pcs.

Folding test fixture 1 pcs.

Metal mesh test fixture 1 pcs.

Standard emery paper 1 pcs.

Optional consumable:

 ASTMD3514 drawing card.

 ASTM D3514 metal friction.
