Electric Friction Textile Testing Equipment With ISO105-X12 , D02 , AATCC8/165 , JIS L0849 Standards

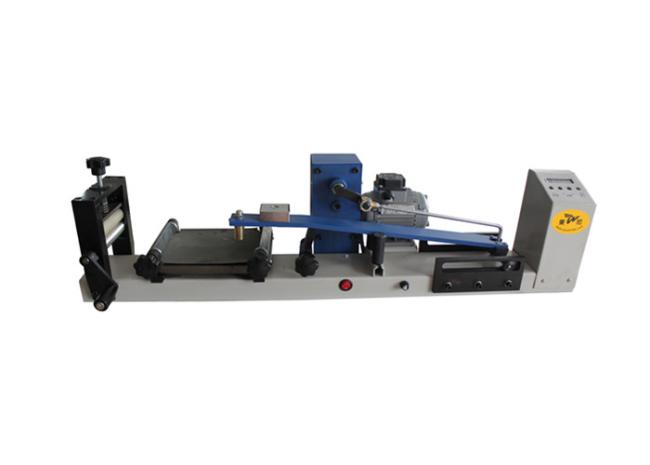

Textile Electric Friction Test Machine With ISO105-X12,D02,AATCC8/165,JIS L0849 Standards
Application of Textile Electric Friction Test Machine
This machine is based on the friction test machine II in the prescribed form of Japanese Industrial Standard JIS L0849, primarily used in dyeing color fastness to rubbing test.
Features of Textile Electric Friction Test Machine:
1. Speciality in testing equipment
2. Various products to choose from
3. Accept customization
4. Excellent after-sale service
Techincal Parameter of Textile Electric Friction Test Machine:
|
Friction head Size |
Round: Φ16mm square: 19 * 25mm |
|
Reciprocating friction and the number of first stroke: |
100mm ± 1mm |
|
Friction head downward Pressure |
9 ± 0.8N |
|
Friction velocity: |
from one per second (60 ± 3 beats / min) |
|
Test bed mat material thickness: |
1 ~ 1.5mm (thin white consumption) |
|
Maximum size and thickness of the sample: |
220 *110 * 5mm |
|
Crank rotation frequency: |
60 times / min |
| Accessories | weights 6pcs, power line 1pcs |
| Standards |
ISO105-X12,D02,AATCC8/165,JIS L0849 |
