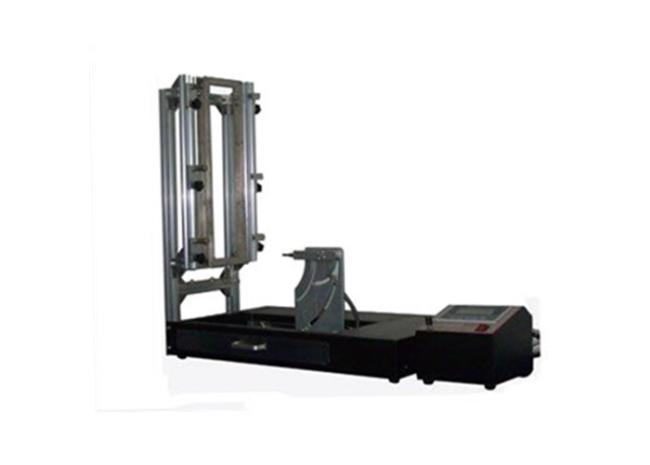

Textile Flammability Testing Chamber With Standards ISO 6940,6941,15025,BS 5438
Product Name: Textile Flammability Testing Chamber
Model:HTB-003
Detailed Descriptions
This tester is suitable for single component or multic-omponent (coating, quilting, multilayer, laminated products and similar) clothing, curtains and a large tent including cold tent and door cover textiles vertical to the properties of flame spread. This tester can only be used for evaluation of control in the laboratory under the condition of material or composite performance after contact with flame, The test results do not apply to the status of hypoxia occasion or heating time is too long in the fire.
Specifications:
| Specimens diameter: | 560mm*170mm, Warp, weft each 3pcs |
| Flame height: | 0~60mm(adjustable) |
| Fire mouth Angle : | 0°/22.5°/90°(adjustable) |
| duration of ignition: | 5s |
| Combustion gas: | butane gas |
| Dimension: | 930*650*880mm(L*W*H) |
| Weight: | 30kg |
| Power: | 1∮ AC 220V 50Hz |
Standards:
GB/T 5456,8746,BS EN ISO 6940,6941,15025,BS 5438,
Accessories:
Flame gauge 40mm 1pcs(ISO 6940,6941), Flame gauge 25mm 1pcs( ISO 6940,6941 Fire needle mouth positioning instructions 2pcs (ISO 6940,6941), clamp 2 set, weights 8 pcs, burning torch 1pcs Micro gas tanks device, Micro gas cylinders, power line 1pcs
