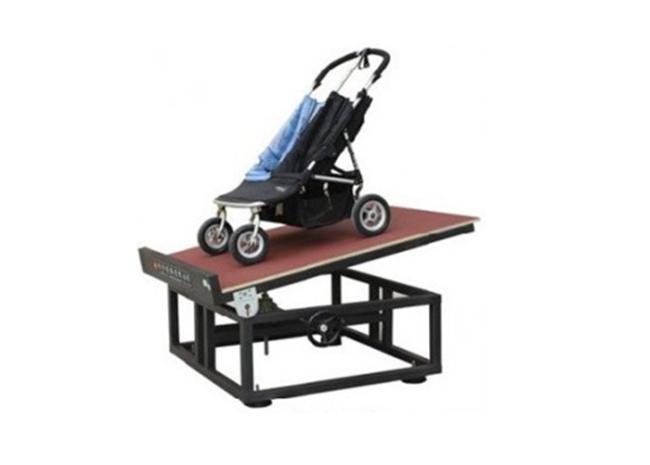

Inclined Plane Device For Stability Test And Brake Performance Test

Inclined Plane Device for Stability Test and brake performance test

Application :

Inclined Plane Device is used for Stability Test and brake performance test

Comply with Standards:

ASTM 963, EN71-1 2014 8.26, ISO8124-1 5.28/29,NM300-1

Techincal Parameter Performance:

1.Inclined plane device angle adjustable range: 0-15degree

2.Frame :Aluminum

3.Inclined plane: use imported plate,19mm Fine core plate

4.Plane Surface: Use P60 alumina and abrasive paper to cover the plane.

5.Oblique plane size: W*L1100*1600mm (or specified by customer)

Test instruction

Use the toys can be loaded one child weight.

Loading on the toys, which is worst standing position or seating position,

Children below 36months(including)Loading 25 kg±0.2 kg(another purchase)

Children above 36months,loading 50 kg ±0.2kg(another purchase)

Loading on the toys, put the toys on the 10±1degree Inclined plane

If the toys can be loaded one child weight standing or seating should be testing, to determine whether the toys will be fall down

Heavy immobile toys, put the toys on 5°±1° oblique plane, adjust removable parts position, get the worst position to test.
