220V 50Hz Fabric Testing Machine Fiber Heat Shrinkage And Force Tester

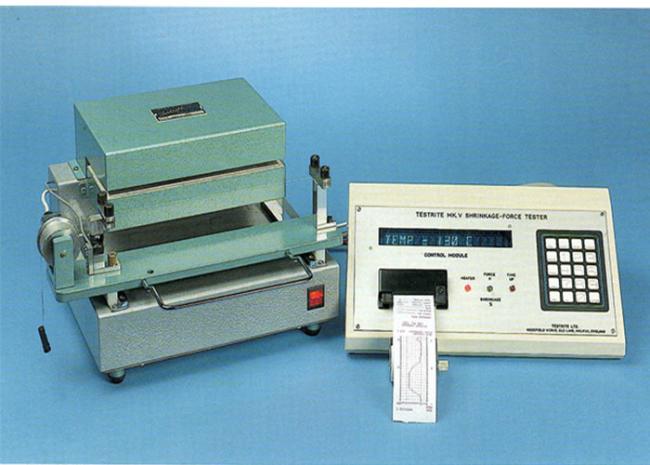

Fiber Heat Shrinkage and Force Tester Designed and based on the original T.S. AB idea, to determine the shrinkage of tyre cord yarns at closely controlled temperatures, this totally new Shrinkage and Force Tester incorporates.
Features:
1. Heater and Hardware Unit remote from separate control module ( for ease of service and repair. )
2. Control module features a large bright 16 character alphanumerical display.
3. Three term P.I.D. controller with +/- 0.25°C deviation.
4. Standard RS 232 Output to link to your computer ( gives ASCII output of load or shrinkage everytime a graph point is plotted. )
5. 20 Key Touch Pad to programme test requirements.
6. Temperature range of ambient (20°C) to 250°C.
7 -5% to +32.5% Shrinkage range.
8. Either 0-25 Newton or 0-100 Newton force range.
9. 0-99.9 Minute Timer ( almost 1.40 hours ).
10. Built in miniature printer producing accurate graph of result.
11. Output provided 0-2V for larger recorder.
12 Average key.
13．220V 50Hz
14. Equipment Design comply with standard: ASTM D4974 ,ASTM D5591
Approx Shipping weights and Measurements:
Packing Case: 75 x 52 x 46 cm.
Gross Weight: 55 lb ( 25 kg )
Nett Weight: 44lb ( 20kg ).
Specification:
| Technical Parameter | MK 5 |
| Function | Heat shrinkage tester is an instrument designed to test material performance under heating conditions.Contains the tyre cord, industrial yarn, yarn, plastic wire, tape, filaments, monofilament, mixed yarn, spun yarn, etc., and textile applications to nylon, polyethylene, polyester, polypropylene fiber and plastic, etc. |
| Sample Length | Heat area10 inch(25cm),sample length ≥40cm. |
| Temp Range | 20°C - 250°C |
| Packing list | Tester,Control panel,Data cable,Temperature-compensationCable,9gweights,Ribbon paper,Print paper 2rolls,User manual |
| Heat Accuracy | +/- 0.25°C |
| Shrinkage Rate Range | -5%-32.5% |
| Shrinkage Rate Accuracy | 0.1% |
| Shrinkage Force Range | 0-25N or0-100N Option |
| Shrinkage Force Accuracy | 0.1N(100N) |
| Test Time | 0-99.9 minutes |
| Sample quantiy | 1 |
| Sampling way | Manual operation |
| Read model | Electronic type |
| Record way | |
| Power | 220V AC/50Hz ,800W |
