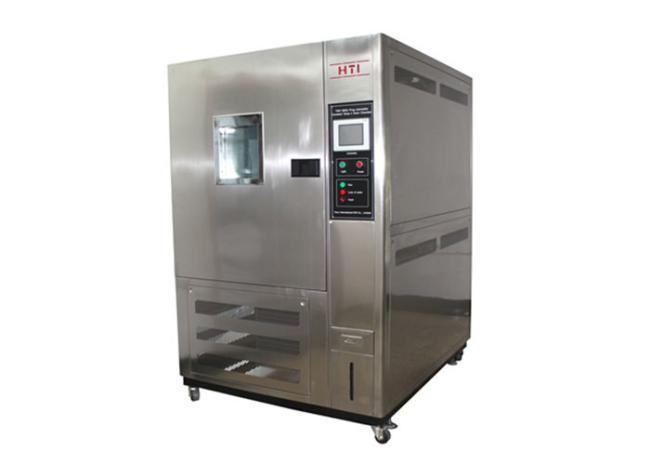

IEC60068-2 Climatic Testing Chamber For Product Humidity And Temperature Testing
Price:
Negotiation
MOQ:
1 set
Delivery Time:
10-15 working days
Brand:
HTI
Product Description
Product Description:
Used for the dry, heat resistant and wet aging test of all kinds of materials.Suitable for electronic, electrical, instrument, food, vehicle, metal, chemical, building materials, aerospace, medical etc .In order to test the reliability of the product in this environment by setting parameters such as temperature and humidity in the laboratory.
Technical Parameter
| Model | TNJ-041-150 | TNJ-041-225 | TNJ-041-408 | TNJ-041-800 | TNJ-041-1000 | |
| Capacity | 150 Liter | 225 Liter | 408 Liter | 800 Liter | 1000 Liter | |
| Dimension | Inner Dimension(W *H* D)mm : | 500*600*50 | 500*750*600 | 650*850*800 | 800*1000*1000 | 1000*1000*1000 |
| Outer Dimension(W *H* D)mm : | 950*1500*1050 | 950*1650*1150 | 1050*1750*1350 | 1450*1900*1350 | 1550*1900*1350 | |
| Temp | Temperature range(Option): |
A:0～+150⁰C B:-20～+150⁰C C:-40～+150⁰C D:-60～+150⁰C E:-70～+150⁰C |
||||
| Temperature fluctuation degree: | ± 0.5⁰C | |||||
| Temperature uniformity: | 2 ⁰C or less | |||||
| Temperature deviation: | ±2⁰C or less | |||||
| Avg. rate of fall | Fall + 20 to 40⁰C temperature drop time (light) 60 minutes | |||||
| Avg. rate of rise | Temperature rise time - 40 to 100 ⁰C (light) 45 minutes | |||||
| Humidity | Humidity range: | 20% ~ 98% R.H | ||||
| Humidity deviation: | 2%R.H | |||||
| Heating rate: | 1.2 ~ 2⁰C / min | |||||
| Cooling rate: | 0.7 ~ 1 ⁰C / min | |||||
| Construction | Control Panel: | LCD touch screen controller (Korea TEMI880) | ||||
| Control Program memory capacity: | 120 level programmable, maximum 999 times | |||||
| Shell material: | 201 brushed stainless steel plate or cold rolled steel plate anti-rust treatment | |||||
| Inner box material: | SUS304# mirror stainless steel plate | |||||
| Thermal insulation materials: | Polyurethane foaming or high density super fine imported glass wool. | |||||
| Observation window: | Use the conductive film toughened glass, lighting equipment to start the fluorescent lamp in the fly lipu pl-s 11W. | |||||
| Fan: | Centrifugal fan | |||||
| Heater: | U-fin type 304# seamless steel high-speed heating electric heater | |||||
| Refrigeration compressor: | French taikang scroll compressor | |||||
| Refrigeration: | Air cooled | |||||
| Refrigeration accessories: | Bending force, danfoss of Denmark, honeywell, Germany, etc | |||||
| Sample rack: | Two floors | |||||
| Electrical accessories: | Fuji international famous brand | |||||
| Pin hole: | On the left side of the machine Φ 50 mm | |||||
| Wiring mode: | The electric control wiring method is carried out according to international electrical standard | |||||
| Security device: | Fan overload protection,compression overheating protection, overpressure protection, overtemperature protection, moisture and water shortage protection | |||||
| Total power: | 9KW | |||||
| Power Supply: | AC220V optional 50Hz 4.5KW | |||||
