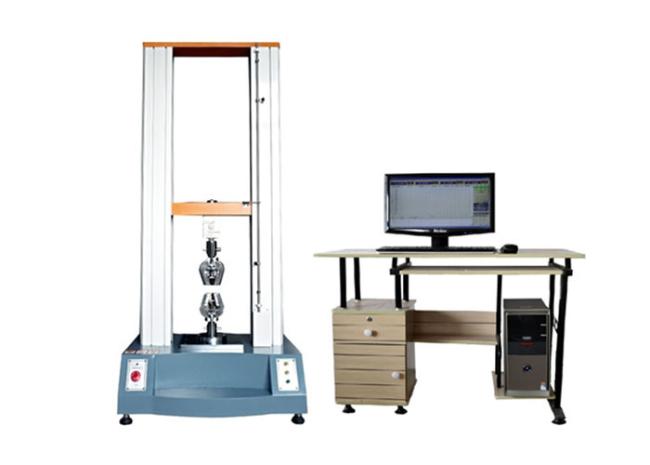

Dual Arm Computer Servo Tensile Testing Machine With Effective Test Width 400mm
Dual Arm Computer Servo Tensile Strength Tester(Digital Display)
Introduction of product:
This Tester can widely apply to a variety of different textile materials and wood, shoes, tires, leather, tannery,rubber tubes, triangular tape, plastic sheeting, plastic sheeting, packaging films, acrylic, FRP, ABS, EVA, PV and other products, semi-or dumbbell-shaped specimens of the tensile strength, elongation, tear, glue focused, tensile stress, peel, shear, the sticky relay of rubber and metal by using different fixtures
Technical parameters:
| Item | Model | ||||||||
| Max Capacity | HTP-004A | HTP-004B | HTP-004C | HTP-004D | HTP-004E | HTP-004F | HTP-004G | HTP-004H | HTP-004I |
| 1000N | 2000N | 5000N | 10KN | 20KN | 30KN | 50KN | 100KN | 150KN | |
| Accracy | 0.5 grade | ||||||||
| Test force loading the measuring range | 0.4%-100%FS | ||||||||
| Load Sensor | High precision tension and pressure transmitter (multiple sensors can be installed at the same time - optional) | ||||||||
| Max Test Force Resolution | 1/200000 | ||||||||
| Unit Shift | N,KN,KGF,N,LBF,unit of length: mm, cm, inch freely shift convertible | ||||||||
| Test Speed range | 0.01 - 500mm / min. or specified per customer. | ||||||||
| Speed Control Accuracy | ± 0.5% when the control rate ≥ 0.05% FS/S | ||||||||
| Displacement measurement Accuracy | ± 0.5% of indication | ||||||||
| Test Strok | 800mm,Effective test width 400mm or Customization | ||||||||
| Dynamic system | Servo motor + hight precision ball screw | ||||||||
| Overload Protect system | Over 10% of the set test force, the system will be stopped automatically | ||||||||
| Power | 220 VAC, 50/60 Hz,0.75 kW; | ||||||||
| Dimension | 1100*700**2100mm(L*W*H) | ||||||||
| Weight | 400KG | ||||||||
Comply With Standards:
ASTM D751,ASTM D882,ASTM D1117,ASTM D1445,ASTM D1593,ASTM D1683,ASTM D2209,ASTM D5034,ASTM D5053,ASTM D1424,ASTM D2212,ASTM D2262,ASTM D2261,ASTM D4704,ASTM D4705,ASTM D5733,ASTM D5734,ASTM D2207,ASTM D412,ASTM D638 ,ASTM D3137,ASTM D3574,ASTM D624,ASTM D3574,ASTM D4964,ASTM D2061,ASTM D5169,ASTM D5170,ASTM D2558,ASTM D413
