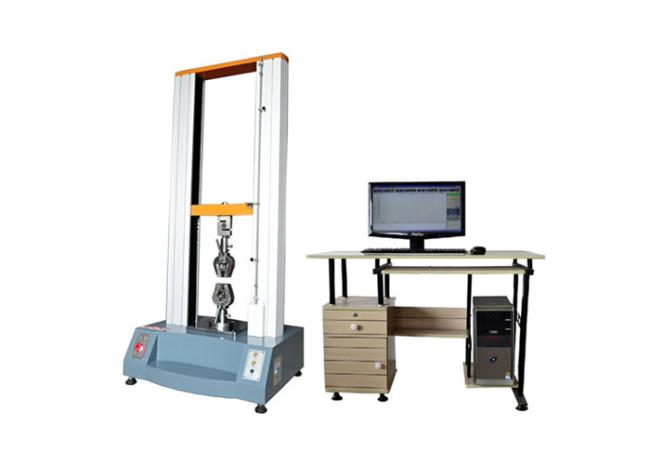

Metal Wood Tensile Testing Machine With Computer Software Control HTP-004
Price:
Negotiation
MOQ:
1 set
Delivery Time:
15 working days
Brand:
HTI
Product Description
Metal Wood,Stone Tensile Strength Tester
Main Function and Usage
It is suitable for tensile,compression, bending, cutting , stripping, splitting and other testings for metal materials or non-metal materials.
Adaptable Standard GB,ISO,ASTM,DIN
Main Specifications and Technical Parameter:
| Model | WDW-100M |
| Max. Testing Force | 100kN |
| Character | Adopting TECO servo systems and servo motor, with full-digital Measure control system |
| Machine Stiffness(kN/mm) | 300 |
| Measure Range of Testing Force | 2%-100% of the Max. testing force |
| Accuracy of Testing Machine | Over ±1% than the value display |
| Accuracy of Deformation Measure | ±1% |
| Measure of Cross-beam Displacement(mm) | Discrimination 0.001 |
| Accuracy of Testing Force Value Display | Over ±1% than the value display |
| Measure Range of Deformation | 2-100% |
| Measure Range of Large Deformation | 10~800(optional) |
| Accuracy of Large Deformation | With in ±1% of the value display |
| Discrimination of Displacement(mm) | 0.001 |
| Adjustment Range of Force Control Speed | 0.001~10% |
| Accuracy of Force Control Speed | ≤±1% |
| Adjustment Range of Deformation Speed | 0.00025 /S~0.0025 /S |
| Control Accuracy of Deformation Rate | ≤±1% |
| Adjustment Range of Displacement Rate | 0.01mm/min~500mm/min;(random setting) |
| Accuracy of Displacement Rate and Space | ≤±1% |
| Tensile Volume(mm) | 600 |
| Width of the Testing Space(mm) | 470 |
| Overall Dimension (mm) | 845 ×654×2176 |
| Clamping Type | Standard Refiguration: wedge tensile,compression, bending optional implement,wedge, plate and any other jaw optional implement |
| Weight(kg) | 700 |
| Motor Power(kW) | 1.5 |
| Type of Machine |
Floor type |
