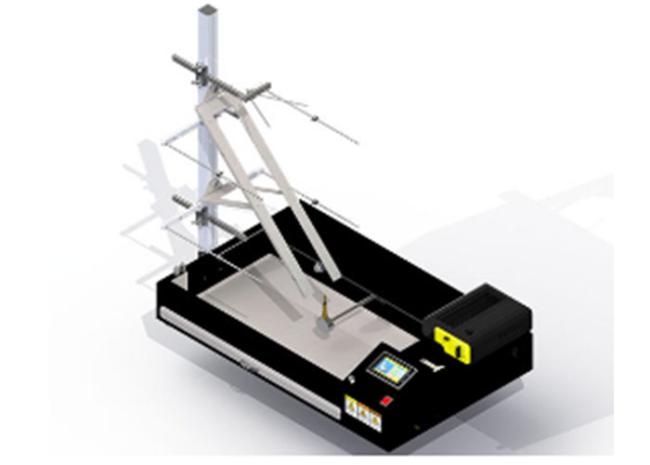

Vertical Horizonta Flammability Testing Equipment For Toys Fire Test
Tester Instroduction :
Toy flammability tester is to detect children's clothing or toys and jewelry combustion performance, evaluate the following types of toys burning speed and time
Children wear clothes (fancy dress), especially those with a shawl, a flowing clothes and similar items:
Children can enter the toys, such as tents and games room games
Children can cuddle toys, stuffed toys, and software.
Application:
1.To detect the flammability resistance of vertical oriented fabrics or wool of weft and toy.
2.Requires operator to ignite. Flame self-extinguish.
3. Including electro valve, burner and micro switch ignition strand.
4.PLC controller, friendly man-machine interface and data analysis function.
Specification:
| Model | TW-226 |
| Ignition of the Time Range | 0-99.99S Precision 0.01S |
| Continued burning time | 0-999.9S Precision 0.1S |
| Burner size | different by standard requirements. |
| System and Display | Programmable PLC system to control automatically,text display |
| Dimensions | 600 x 700 x 1200mm ( L x W x H ) |
| Weight | 60kg |
| Standards |
EN71-2,EN ISO 6940 6941 BS5438,5722,7837, IRAM 3612 COMPORTAMIENTO A LA LLAMA |
