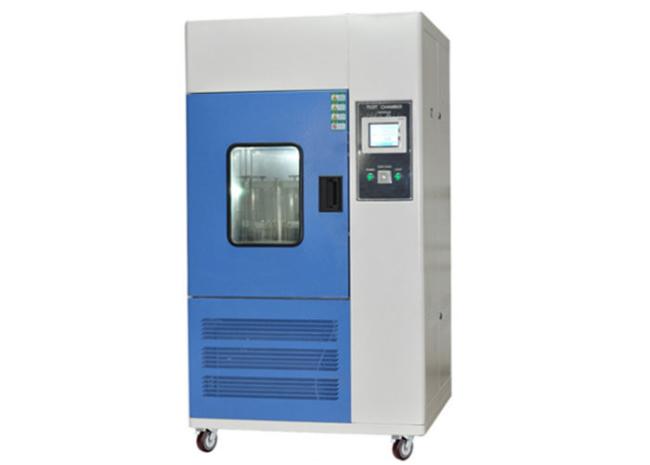

Rubber Ozone Aging Test Chamber For Rubber Deterioration Surface Cracking Test
Rubber Ozone Aging Test Chamber For Rubber Deterioration Surface Cracking Test
Equipment Application:
Amount of ozone in the atmosphere is small is the main factor of rubber cracking, ozone aging tank simulation and strengthen the ozone in the atmosphere conditions, studied the effect of ozone on rubber, rubber resistance to ozone aging fast identification and evaluation of performance and the antiozonant shielding efficiency of the method, and then take effective measures, the anti aging in order to improve the service life of rubber products.
Specification:
| Model | THE-005 |
| Internal dimension (WxDxH) | 400*500*500mm (Customized) |
| External dimension (WxDxH) | 1000*1000*1750mm |
| Temperature range | RT+10~ 60℃ (suggest to use 40℃±2℃) |
| Temperature Fluctuation | ±1℃ |
| Humidity range | 30%~90%RH |
| Humidity fluctuation | ±3%RH |
| Ozone concentration | 50~1000 pphm, adjustable |
| Ozone concentration deviation | ±10% |
| Sample holder | SUS#304 stainless steel |
| Temperature controller | Programmable touch screen controller |
| Ozone concentration analysis | Concentration analysis meter |
| Ozone generator | High pressure silence discharge type |
| Protection system | Leakage, short circuit, over temperature, over heat |
| Test criteria | ASTM D1149, ISO 1431, JIS K6259... |
Equipment complys with Standards:
ASTM1149, ASTM1171,ISO1431, DIN53509 ,JIS K 6259,GB/T13642
