Carton Bursting Strength Testing Machine , Packaging Testing Equipment Full Automaticly
Carton Bursting Strength Testing Machine , Packaging Testing Equipment Full Automaticly

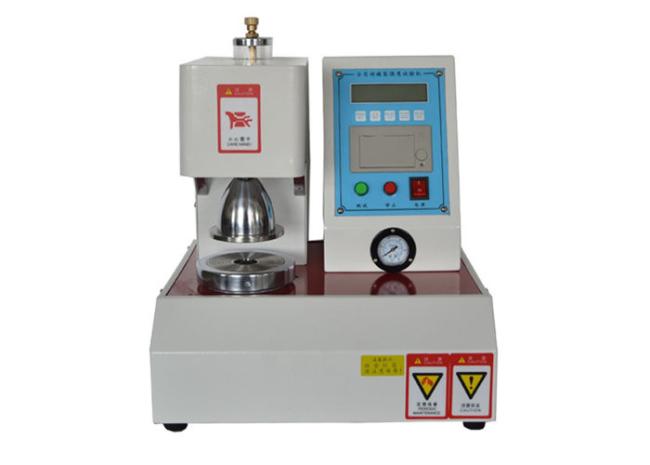

Full-Automaticly Package Carton Bursting Strength Testing Machine
Carton Bursting Strength Test Machine Of Corrugated Box, Automatic Burst Strength Tester Price For Paper
Applications of Automatic Burst Strength Tester
This bursting strength tester is used to test the bursting strength of all kinds of paper, such as packaging materials, including plain paper, corrugated paper, toilet paper, packaging, tape, leather, packaging films, fabrics, etc. Adopt advanced microcomputer controller and digital processor, to ensure result precision. With thermal printer, to save and print out test data. Safty protection device, to ensure overload power off. It is based on the international Mullen method.
Standards of Automatic Burst Strength Tester
Technical parameters of Automatic Burst Strength Tester
| Model | TNJ-038 |
| Measuring range | 2-60kg/cm2 (204 ~ 6160kpa) |
| Accuracy | ≤ ± 0.5% |
| Resolution | 0.01kpa |
| Deformation error | ≤ 1mm |
| Up and down the plate concentricity | ≤ 0.25mm |
| Film convex pressure | (9 ± 0.2) mm / (30 ± 5) kPa |
| Oil delivery speed | 170 ± 15ml / min |
| Clamping mode | automatic clamping |
| Clamping force | 400kpa ~ 1200kpa (adjustable) |
| Weight | 70kg |
| Dimension | 445*425*525mm |
Comply with standards
ISO2758, ASTM D2210, TAPPI TT403, JISL1096 / L1018 / P8112 / P8131 "paper - the determination of bursting strength.
