Max 250 Centigrade Textile Testing Equipment , Scorch Sublimation Color Fastness Tester

Max 250 Centigrade Textile Testing Equipment , Scorch Sublimation Color Fastness Tester

Application:

To determine color fastness to hot pressing and dry heat and to conduct sublimation tests. Providing controlled conditions of dry heat and pressure with top and bottom heated surfaces, electronic temperature controller and carefully controlled top plate weight.

Technical Parameter of Textile Scorch Sublimation Color Fastness Tester:

Test stations: 1group, 3 groups, 5 groups
Heating surface dimension: 40mmx100mm or customized
Total number of pads: 6 heating pads, 2 for each heating station, with individual heating
Range and error of temperature: room temperature -250C
Specimen dimension: 120mmX40mm
Timer range : 0-9999S
Temperature controller: set temperature, auto constant temperature control
Power: 1000W
Test pressure: 4+/-1KPa
Dimension: (WxDxH): 410x310x170mm
Weight: 14kg
Power supply: AC220V/110V, 50Hz. 10A

Textile Scorch Sublimation Color Fastness Tester comply with Stanard:

AATCC 92,114,117,133, ISO 105, BS 1006,M&S C13

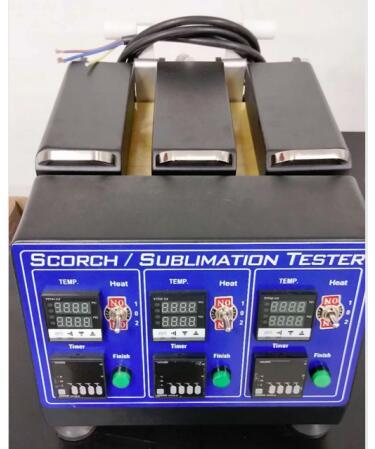

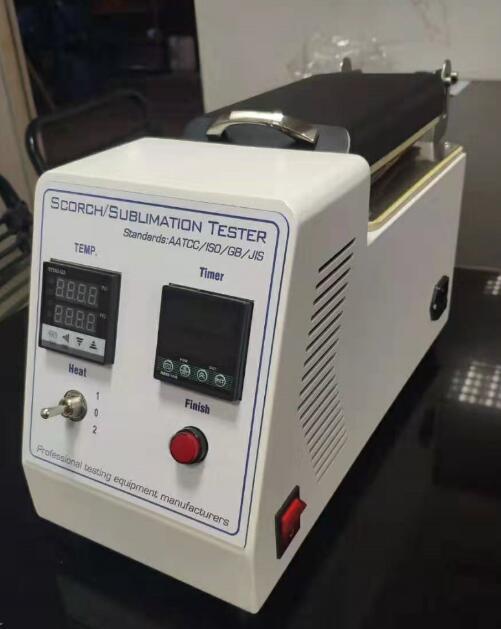

                         Three working positions                                                           One working position
