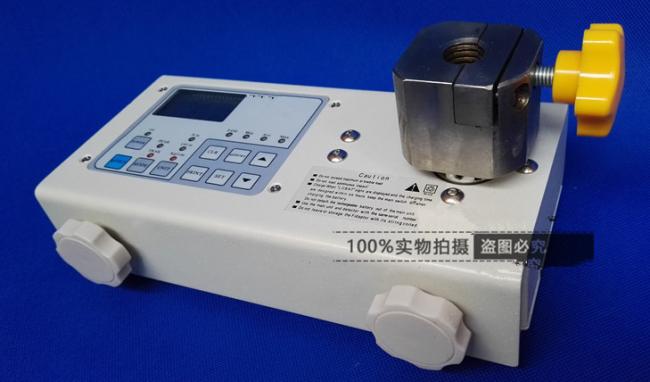

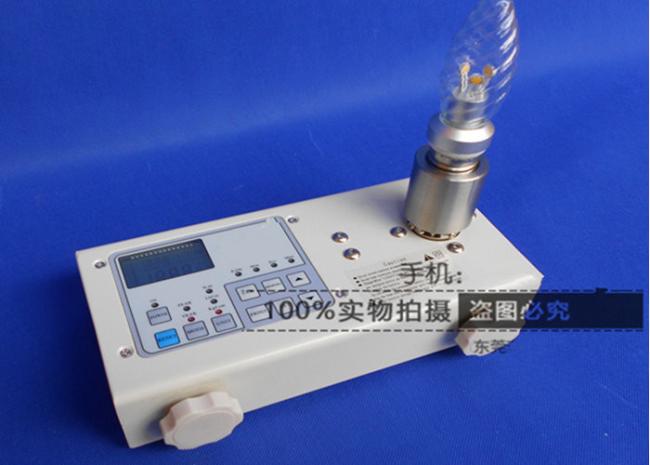

Digital LCD Screen Display Lab Testing Equipment Torque Tester For Lamp Testing
Digital LCD Screen Display Lab Testing Equipment Torque Tester For Lamp Testing
1.Product Introduction :
Measured by clamping the other products, such as stopper (cap) of the tightness, the destruction of the small parts test, quality control of plastic screw.

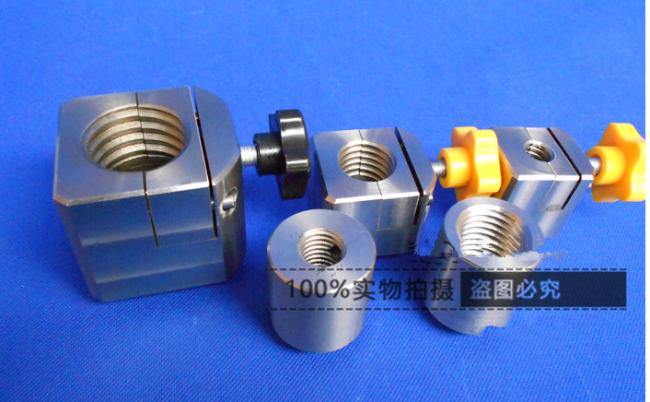

Adjustable chuck for a variety of sizes and shapes of bottles and caps Three measurement units
2.Features :
1), Digital LCD Display Screen
2), Automatic alarm settings
3), 10 test data can be stored and printed
4), Automatically calculate the average value of stored data
5), Can print the field test curve
6), Kgf.Cm / Lbf.in / N.m conversion
7), with peak hold function
8), Nickel hydrogen battery power display
Power saving design of
9),1-60 minutes adjustable automatic shutdown without operation
10), Automatic charge control
11), Touch the button on the operation
3.Main Technical Parameter:
| Model Index |
HP-100 |
|
KGf.cm Test Range N.m Lbf.in |
0.15-10.00 KGf.cm 0.015-1.000 N.m 0.15-9.0 Lbf.in |
| Precision | Within ±0．5% |
| Test speed | 600HZ |
| Power | Ni MH battery:1．2V*6 |
| Charging time | <8 Hour |
| Full battery continuous use time | 50 hours |
| Battery life time | ≥500 times |
| Dimension | 1 23mm x 230rnm x 651mm |
| Weight | 4 KG |
| Charger adapter | Imput:AC 220V 50HZ Output:LDC 12V 300mA |
