Projectile Velocity Tester , Kinetic Energy Tester For Toys of Kinetic Energy Test
Projectile Velocity Tester , Kinetic Energy Tester For Toys of Kinetic Energy Test
1.Application:
To determine the size catapults kinetic energy of toys, the ejection of parts of the test apparatus through the tube or external testing of the components of the two sensors detect the ejection toy parts used away after a certain period of time, it has calculated the move Energy. The main instruments used for this test launch of baby toys or children's safety.
2.Main Parameters:
| Display: | Color LCD |
| Test cycle: | 5 times/group |
| Internal test channel: | High sensitivity infrared ray raster |
| Internal test channel: | 100mmx100mm |
| Internal test distance: | 6in/152.4mm |
| Internal test projectile size: | 2mm~60mm |
| External test sensors: | High sensitivity infrared ray sensor |
| External test projectile | any moveable items |
| External sensors distance: | 25~380mm adjustable |
| Test projectiles weight: | key input,0.01~999.99g |
| Test Distance: | key input, 0.1~999.9mm |
| Time display: | 0.000001~9.999999s |
| Speed display: | Automatic calculation and display, 0.0001~999.99 m/s |
| Automatic calculation and display | 0.000001~999.999999 J |
| Data display: | current test time, speed, kinetic energy, average value of five times test, max test value |
| Printout: | sample number, weight, distance, average time, min time, average speed, max speed,average kinetic energy, max kinetic energy |
| Dimension | main frame 31x42x30cm, external part: 9x43x13cm |
| Weigth (approx) | ≈12Kg |
| Weight: | AC 220V 50Hz 3A |
| Comply with standard | EN71 ,ASTM F963,ISO8124 |

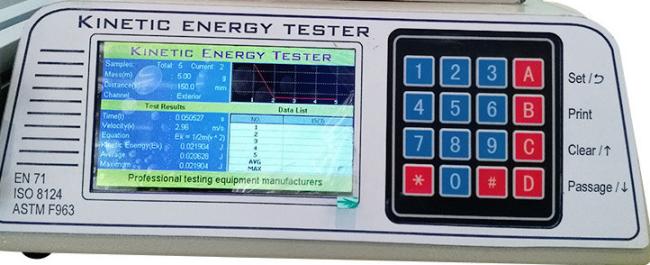

Control Panel :
Comply with Standards:
This unit could directly show the kinetic energy, time, speed on the screen by test. Kinetic energy no need to calculate by the formula
Standards: ISO 8124-1 4.18:5.15 Kinetic energy of projectiles, bows and arrows; CFR 1500 ASTM F963 4.8, EN-71-1 2014 8.24 Determination of kinetic energy
