110V Lab Testing Equipment Martindale Abrasion And Pilling Tester 2 , 4 , 6 , 8 Heads

HTF-001 Martindale Abrasion And Pilling Tester (2,4,6,8 heads-Touch Screen Control)

Martindale Abrasion & Pilling Tester used to determine the abrasion and pilling resistance of all kinds of textile structures.Samples are rubbed against known abradents at low pressures and in continuously changing directions and the amount of abrasion or pilling is compared against standard parameters. .

The tester is equipped with electronic preset batch counter, timer and pooled sample clips and load device (compatible with international testing standards)

HTF-001 Martindale Abrasion And Pilling Tester (2,4,6,8 heads-Touch Screen Control)

Main technical parameters:

Testing Head: 2 heads

Display: LED

Accumulate count: 1~999999

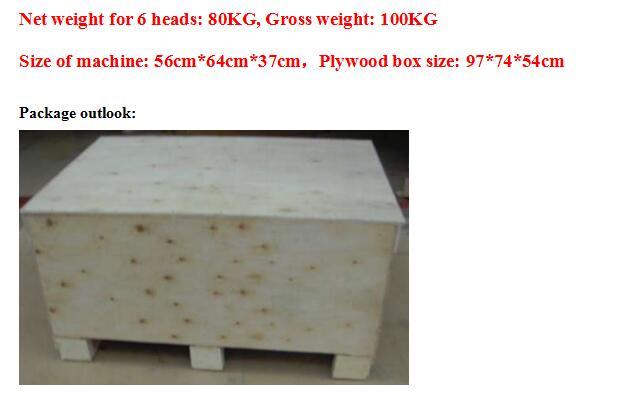

Dimensions (L x W x H) 560×640×370mm

Power supply AC380V, 180W or AC220V, 180W

Pressurized material weight:

(a) wear resistance test: clamps component 200 ± 1g, cloth sample hammer 395 ± 2g , furniture decorations specimen hammer 594 ± 2g.

(b) pilling test: gripper assembly 155 ± 1g, heavy punch 260 ± 1g

Relative velocity 50 r / min

Effective friction diameter:

(a) wear resistance test: φ28.8mm (b) pilling performance test: φ90mm

HTF-001 Martindale Abrasion And Pilling Tester (2,4,6,8 heads-Touch Screen Control)

Standard: EN ISO 20344 6.12 Determination of abrasion resistance of lining and insock

BS 3424/5690,IWTO 40-88,BS EN 388/530,IWSTM 112/196,ASTM 4966/4970 IS 12673, JIS L1096, SFS 4328, PR EN ISO 12947-1, PR EN ISO 12945-2, SATRA TM31
