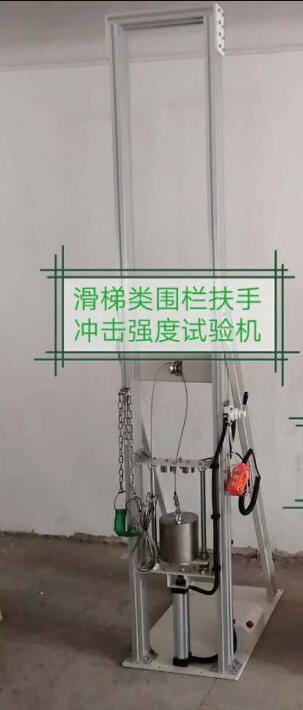

EN1888 AC220V Dynamic Strength Testing Machine

EN1888 TW-403 Dynamic strength Test Machine -Dynamic strength of barriers and handrails

This apparatus is used for dynamic testing of barriers and handrails

When tested in accordance with ISO8124-4 6.3, no part of the barrier or handrail shall collapse, such that the toy does not comply with the relevant requirements of this part of ISO 8124.

Principle: A sudden horizontal impact stress is applied to the barrier or handrail, through a pad, by a falling load.

Place and secure the pad to the top of the barrier or handrail at the most onerous position and without causing any damage to the toy. Attach the free end of the rope to the pad.

Arrange the rope and the pulley so that the load hangs freely. Raise the load vertically 125 mm ± 10 mm and let it drop freely (this will give an impact energy of approximately 30 J). Within 10 s, remove all tension from the barrier.

Size: 500×500×2500mm

Weight: 25 kg ± 1 kg

Impact height: 125mm±10mm

Impact way: free drop

Impact energy: 30J

Sample height: 90cm~240cm

Control: pulley control

Size(WxDxH) 56x85x254cm

Weight: ≈140Kg

Gas source: ≥6kgf/cm2

Power: 1∮ AC 220V 50Hz 3A

Standard: EN71-8 6.4 Dynamic strength of barriers and handrails ;ISO 8124-4 6.3 Dynamic strength of barriers and handrails (see 4.2)
