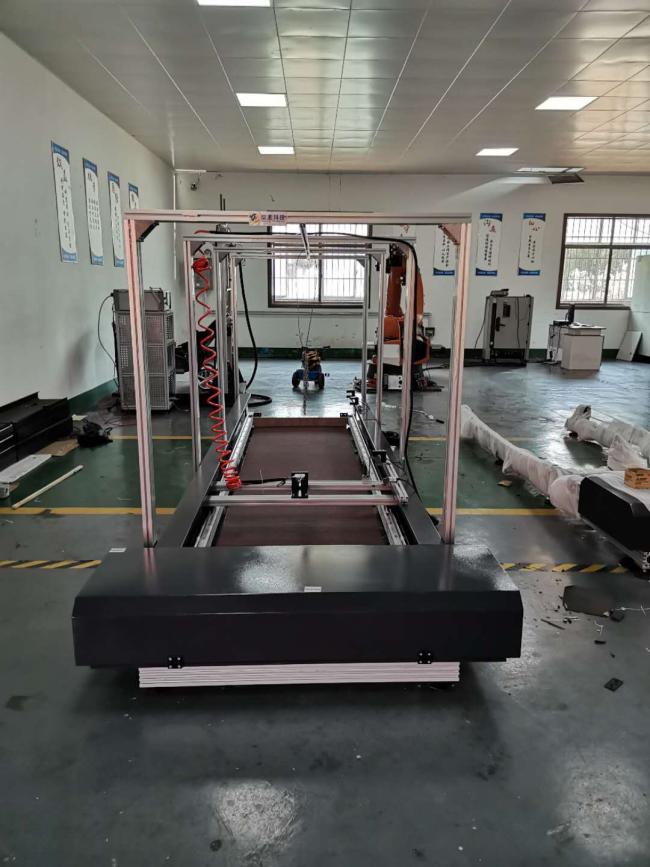

100kg load 2m/S Toys Testing Equipment For Wheeled Toys

This 2 m/s Tester is mainly used for test ride-on toys at the speed of toys 2m / s when the value of the barrier imposed by force. Pull the toy at a constant speed of 2 m/s ± 0.2 m/s on a surface covered with aluminum oxide sand paper P60 and determine the maximum pull force. Toys will be under test placed on the conveyor belt, the drive wheel until the toy speed of 2m/s and remain stable; the display shows the pressure sensor to the force sensing value, according to ability to judge the value of toy safety.

High precision speed control valve, adjust the working speed of the belt precisely.

High precision force sensor could move up and down.

Standard: ISO 8124-1 2014 5.16.1 Determination of free-wheeling facility

Main technical parameters:

Maximum test load (Sensor) (kg): 100kg

Frequency range: 100～300rpm

Simulation speed: 2m/s (can be adjusting)

Work table size: L×W(cm) 100×200

Dimensions: 2150x1550x1500mm

Weight:450kg

Total weight after package: 600KG, Total Volume: 3CBM
