Laser flatness inspection equipment For Metal Processing

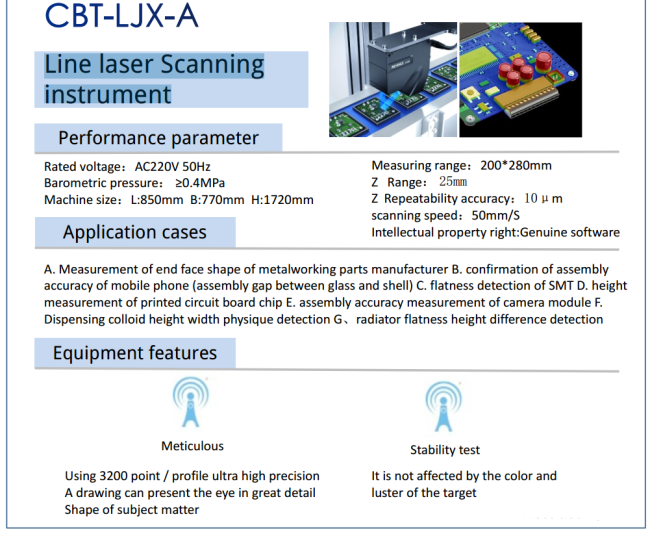

Laser Flatness Inspection Machine For Metal Processing
Performance parameter:
Rated voltage:AC220V 50Hz
Barometric pressure: ≥0.4MPa
Machine size:L:850mm B:770mm H:1720mm
Measuring range:200*280mm
Z Range: 25mm
Z Repeatability accuracy:10μm
scanning speed:50mm/S
Intellectual property right:Genuine software
Features:
Meticulous:
Using 3200 point / profile ultra high precision
A drawing can present the eye in great detail
Shape of subject matter
Stability test:It is not affected by the color and uster of the target
Application cases:
A. Measurement of end face shape of metalworking parts manufacturer
B. Confirmation of assembly accuracy of mobile phone (assembly gap between glass and shell)
C. Flatness detection of SMT
D. Heightmeasurement of printed circuit board chip
E. Assembly accuracy measurement of camera module
F.Dispensing colloid height width physique detection
G. Radiator flatness height difference detection
