PLC touch screen AC220V 50Hz Textile Testing Equipment
Fabric Digital Bursting Strength Testing Machine , Textile Testing Equipment Full Automatically
ISO 13938.1 Digital Fabric Bursting Strength Tester,good quality and easy-operation fabric testing machine
The Mullen Burst Tester uses a hydraulic method for the determination of bursting strength and bursting distension of textile fabrics. It’s applicable to knitted, woven, nonwoven and laminated fabrics.
Standards: ISO 13938.1, GB/T 7742,FZ/T 60019,FZ/T 01030,ASTM D3786,BS 4768,WOOLMARK TM 29,WSP 30.1,JIS L 1018.6.17
Characteristics:
1. Using the hydraulic method, it’s in line with the new national standard.
2. Touch screen control, simple and easy to operate, touch sensitive.
3. Pneumatic clamping, uniform clamping, and adjustable clamp pressure to avoid slipping or damage to sample, easy to use.
4. Test cover is high transparent organic glass with a built-in LED lamp, which can observe the test process of sample clearly.
5. Automatic induction blasting system is sensitive and reliable.
6. External installation of organic glass cover to prevent the injury to people, safe to use.
7. Using AC servo drive system and synchronous belt wheel drive, noise is low, speed rage is wide and precision is high.
8. Own thermal printer can directly print reports and support working with professional computer software.
Technical parameters:
| Sample holder inner diameter (Test area): | 50cm²(φ79.8mm) or 7.3cm²(φ30.5mm)；optional |
| Elastic membrane (diaphragm)size: | ODφ130mm, thickness:≤2mm |
| Max range: | 2.00 Mpa , Min reading:0.001 Mpa |
| Max distension : | 75mm±0.02mm |
| Pressure rate: | 20ml/min～600ml/min |
| Test methods: | fixed rate expansion, constant pressure, constant expansion and timing |
| Pressure unit: | kpa,kgf/ cm2,atm,mmHg,lb/in2 |
| Dimension: | 550mm×450mm×700mm(L×W×H) |
|
Output |
Printout,display output |
|
Power |
Ac220V /50Hz ,200W |

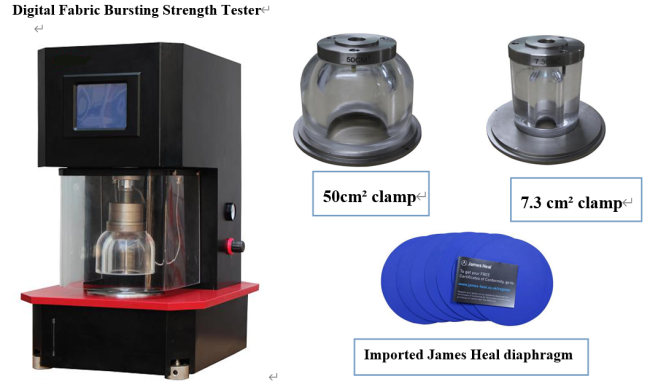

ISO 13938.1 Fabric Bursting Strength Tester:
