ISO8124 Dynamic Strength Testing Equipment For Toy Scoote 2m/s PLC control

TW-257B Dynamic Strength Tester-2m/s Tester -Touch screen control

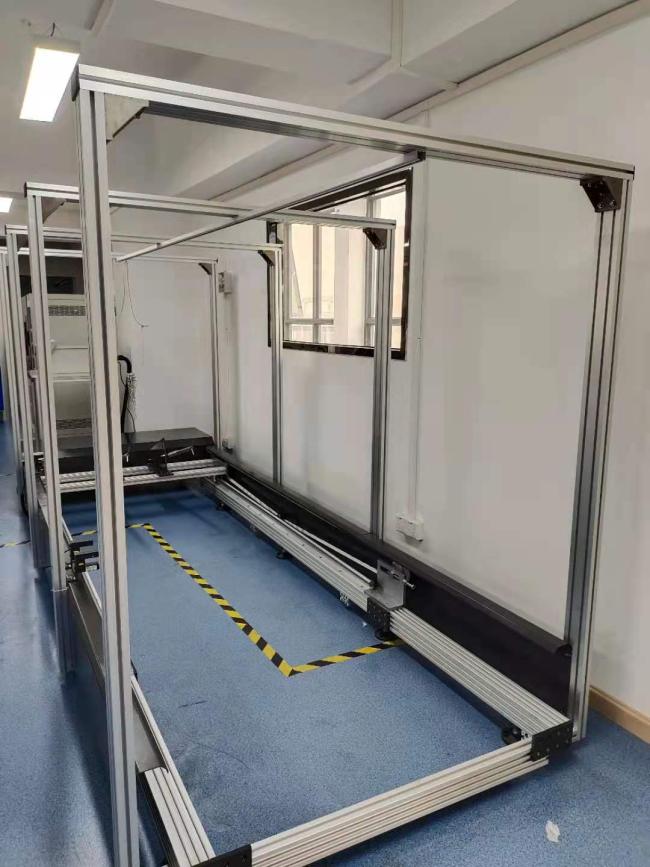

This dynamic strength test machine is used to test the dynamic strength performance of toy scooter by such movement that drive the toy three times at a steady speed of  2.0±0.2m/s perpendicularly into a non-resilient step with a height of (50±2)mm.

Principle:

• The ISO daynamic strength testing equipment simulates the running performance of the toy scooters with a load. The load is secured to the toy and articulated arms with the elbow joints in a downward position are attached to the steering wheel or handlebars if the toy is so equipped. The toy is driven three times into a non-resilient step at a steady speed of (2.0±0.2)m/s.

Determine structure and performance of the toy in good or bad to conform to relevant requirements.

Standard: According to ISO 8124-1 5.27 Dynamic strength for toy scooters; 5.24.4 Dynamic strength test for wheeled ride-on toys other than toy scooters, EN71-1, GB6675A5.24.4

Instrument specification:
