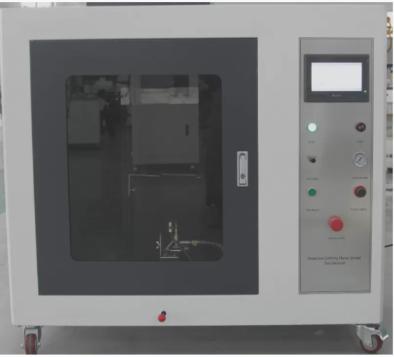

BS EN ISO 15025 Protective Clothing Flammability Tester HTB-003B

ISO 15025 Flammability Testing Equipment, PLC Control Flammability Testing Equipment, Protective Clothing Flammability Tester Meet BS EN ISO 15025, AQ6103, ISO6940, ISO 6941,GB/T 5456

Purpose of equipment

Protective clothing flame spread tester is to determine the ease of ignition and flame spread properties of industrial products in the form of single or multi-component fabrics, when subjected to a small, defined flame. The tester is to assess the properties of textile fabrics in response to flame contact under controlled conditions.

Horizontal &Vertical Flammability Tester is used to determine the resistance of inner material of planes to fire according to the vertical and horizontal flammability test in Part I in Appendix F to FAR 25.

Technical specifications

Packing dimension: 1410L*860W*1510H (mm) =1.83CBM

Packing weight:100kg

Feature:

1.The combustion chamber is made of stainless steel; nice, corrosion-resistant; Dimension: 1200mm X 600mmx 1200mm.
2. All sample holder is made of stainless steel manufacturing,corrosion resistance.
3. Standard burner; flame height level 25mm ± 2mm; vertical 40mm ± 2mm; nozzle opening 0.19mm.
4. The time is automatically recorded, automatic storage; timer accuracy 0.1s.
5. PLC with touch screen control system; to achieve more intelligent test; automatically record test data, automatic storage;
6. Imported brands gauge and control valve, the gas pressure is more stable;
7.Imports needle valve, precise control of the flame height; flame is more stable;
8.High intelligence, simple operation, easy to operate;
9.With the bottom surface of the combustion and combustion of two sample holder; made of stainless steel;
10.Automatic ignition system, automatically turns off;
11.Equipped with a flame height gauge;
12.Pulsed high voltage electronic automatic ignition.
13.Timing button with the PLC automatically record storage combustion time-consuming.
14.Without holding the stopwatch or timer manuscript; the system automatically records the test of time, and generate test reports;
15.The test time and time plus a touch screen can be set to fire. Meet a variety of test standards;
16.Surface combustion and bottom surface combustion burner test program on the touch screen can be switched.

Standards:

 ISO15025:2016 Method of test for limited flame spread ,BS EN ISO 15025:2016
