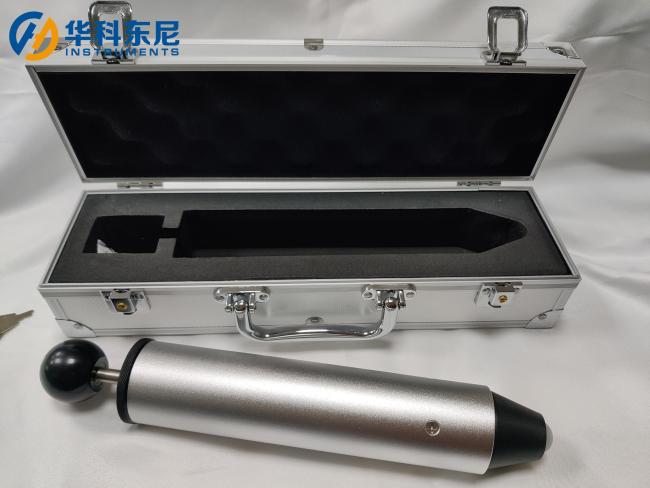

UL1244 0.14J To 2J Spring Impact Hammer For Glass Products / Plastic Toys Test
0.14J To 2J Spring Impact Hammer - Glass Plastic And Toys Test
It is mainly used to test the mechanical impact of electrical housing, plastic toys, glass products and other shells, and whether it is destroyed after the impact is completed.
This impact test tool is made of stainless steel.
Standards: IEC / EN 62115;NM300-6:2002 13,IEC60068-2-75,GB/T2423.55-2006,GB4706.1,GB8898/GB7000,IEC884 and UL1244 etc.
| No. | Impact Energy | Mainly used to |
| 1 | 0.14 ± 0.01 J | Shock test of the phone screen |
| 2 | 0.20 ± 0.02 J | Impact testing of glass, meter housing |
| 3 | 0.35 ± 0.03 J | Impact testing of luminaires |
| 4 | 0.50 ± 0.04 J | Impact testing of plastic housings |
| 5 | 0.70 ± 0.05 J | Impact testing of products in the toy industry |
| 6 | 1.00 ± 0.05 J | Impact test of pump products |
| 7 | 2.00 ± 0.10 J | Shell impact testing of power tools and other products |
| 8 | 0.14 ~1.00 J | Various impact tests |
Parameters:
Impact energy: 0.50J ±0.05J
Length: 211mm
weight:1250g
Outer diameter: 50 mm
Hammer weight: 60g
Hammer R: 10mm
