Integrated Hydraulic Automatic Rising Bollard with 304 Stainless Steel and LED Light
Price:
US$250~US$350
MOQ:
Sample order accepted
Delivery Time:
5-7 working days after payment received
Brand:
SINOMATIC
Product Description
Integrated Hydraulic Automatic Rising Bollard
Featuring 304 Stainless Steel construction and integrated LED lighting, this hydraulic automatic bollard provides superior security and visibility for vehicle access control applications.
Product Overview

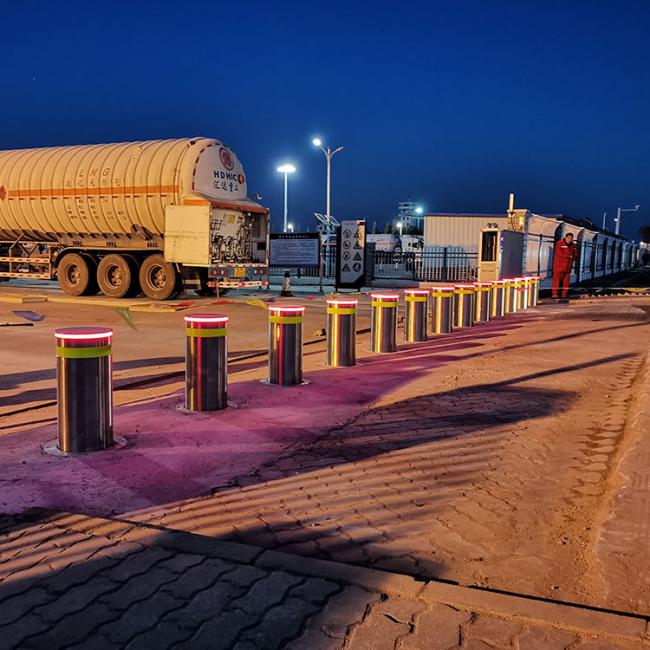

The hydraulic automatic bollard system consists of an oil pump unit and robust steel frame construction. Utilizing soil pressure as the driving force, it efficiently raises and lowers the bollard. Typically installed at vehicle entrances and exits, it rises to block unauthorized vehicles and lowers to ground level to permit authorized passage.
Key Features
- Stainless steel anti-collision design with fully automatic lifting
- Heavy-duty construction with waterproof design and nighttime reflectivity
- One-click remote control operation with automatic lifting and lowering
- Supports multiple linked switching configurations
- Stable and durable performance with branded motor components
Hydraulic Bollard Advantages
- Integrated motor and hydraulic pump with 220V power supply, underground installation with minimal surface impact and waterproof functionality
- Peripheral embedded parts with bottom drainage holes for effective water management
- Exceptional stability with over 10-year service life, outperforming traditional electric and pneumatic bollards
- Steel track construction enhances anti-crash capability while stabilizing underground installation
- Stainless steel material with reinforced hydraulic system, weighing 160kg for maximum impact resistance
Customization & Service Options
- Multiple steel thickness options available (standard 6mm)
- Various color customization possibilities
- Custom sizing to meet specific project requirements
- Multi functional control system ensures steady and safe operation
- Rapid rising times with durable hydraulic pressure system
- Durable stainless galvanization housing
- Optimized frame structure with high anti-impact and loading capabilities
- Enhanced security with superior anti-collision performance
- Reflective band and low-energy LED lighting for nighttime visibility
Technical Specifications
| Bollard Color | Stainless steel original color |
| Raising/Lowering Speed | ≤4S/≤2S |
| Diameter | 219mm (168mm, 273mm, 324mm optional) |
| Raised Height | 600mm(800~1000mm optional) |
| Material | SS304(SS316 optional) |
| Control Mode | Remote control (<50m) |
| System Control | Hydraulic and electric control |
| Working Temperature | -30℃～+75℃ |
| Embedded Cylinder Depth | 800mm |
| Lamp Band | LED light (Acrylic light circle) |
| Power Supply | 220V |
| Thickness | 6mm (8mm/10mm/15mm/20mm optional) |
| Weight | 60kg |
| Service Life | More than 5 million cycles |
| Drainage Mode | Natural drainage + External drainage system |
Additional Features
High Security: Pneumatic air pump in control cabinet provides sustained high-power operation with electronic control for automatic rise/fall functionality and high system independence.
Reflective Band: Multiple color options available for Glossee aveolate reflective band; requires minimal light for clear nighttime visibility.
Material Options: Available in 304 stainless steel, 316 stainless steel, and carbon steel with electrophoresis spray paint.
Flange Design: Anti-skid flange with unique pattern design compatible with various road surfaces and built-in PA orientation.
Top Cap: Simple integration design compatible with various architectural styles, featuring excellent workmanship resistant to close attacks.
